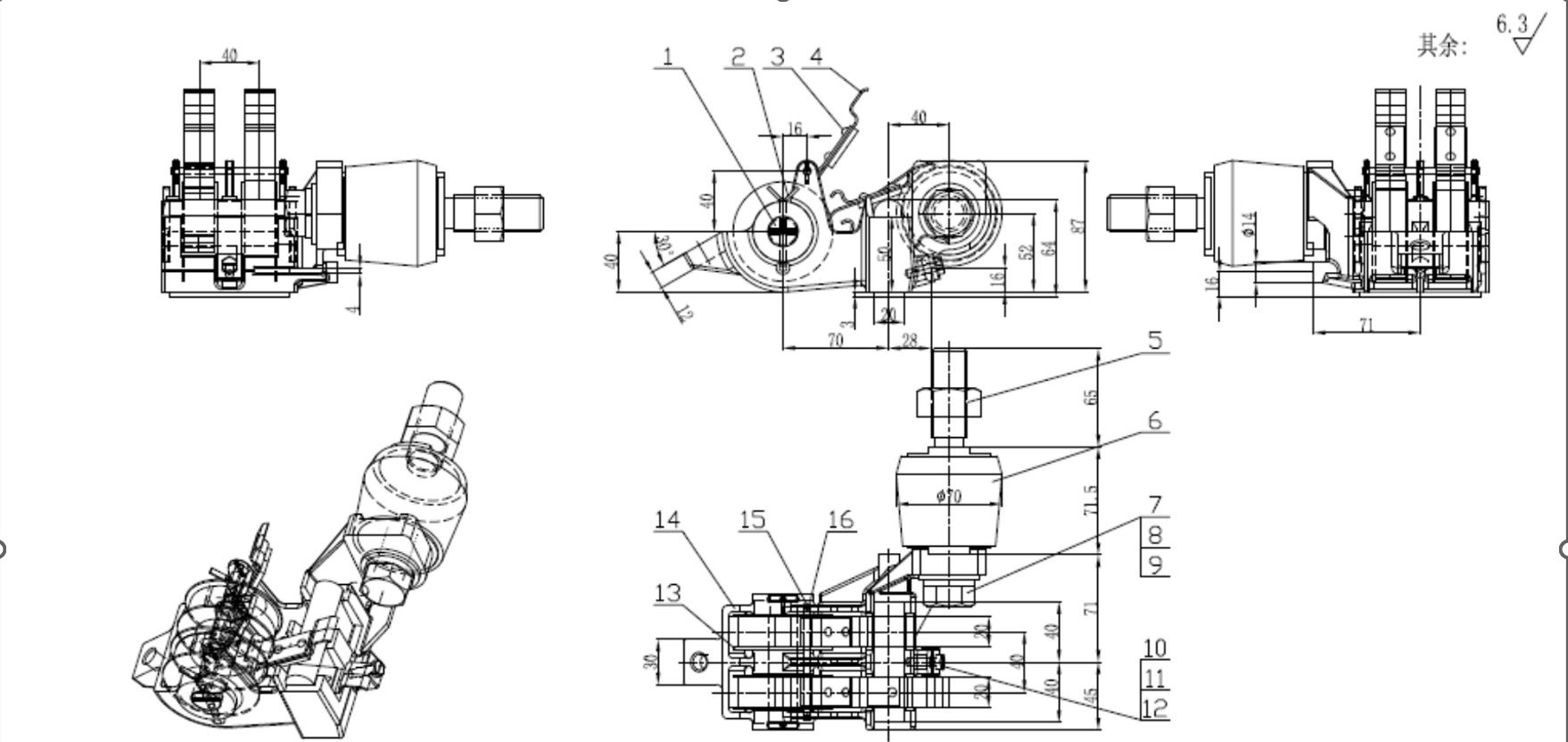

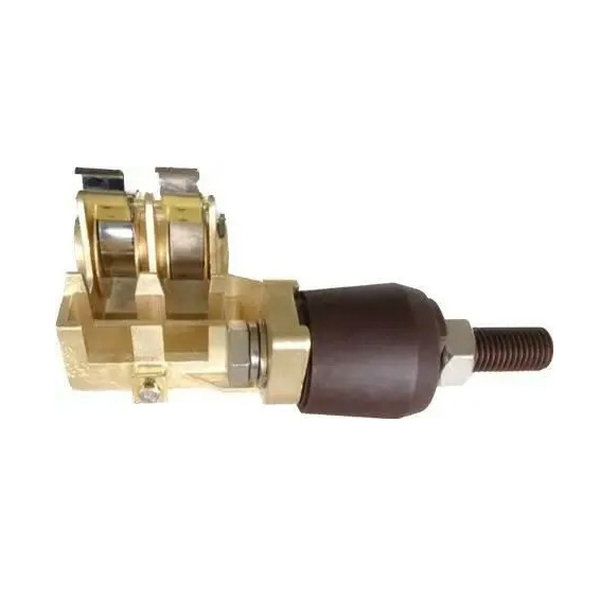

Traction Motor Brush holder

The VOCARBON Traction Motor Brush Holder is a high-performance electrical component designed to ensure stable and efficient power transmission in traction motors used across railway locomotives, electric multiple units (EMUs), metros, trams, and industrial transport systems. Engineered with cutting-edge materials and precision manufacturing, VOCARBON brush holders deliver consistent electrical contact, long service life, and exceptional reliability — even under the extreme operating conditions of modern traction systems.

Essential Role in Traction Motor Systems

In any traction drive system, the carbon brush holder plays a crucial role in maintaining continuous electrical conductivity between the stationary and rotating parts of the motor. The performance of this component directly influences the efficiency, torque output, and reliability of the traction system.

VOCARBON’s engineering philosophy emphasizes electrical stability, thermal endurance, and mechanical precision. Our Traction Motor Brush Holder ensures uniform contact pressure between the carbon brush and the commutator or slip ring, reducing electrical losses and preventing arcing. This not only enhances motor performance but also significantly extends brush and commutator life, reducing maintenance frequency for railway and industrial operators.

Advanced Material Technology

The VOCARBON brush holder is built from high-grade stainless steel, copper alloy, and insulated composite materials designed to perform in high-current and high-vibration environments. Each component is carefully selected to balance conductivity, mechanical strength, and temperature resistance.

Key materials include:

• Copper Alloy Base: Ensures superior electrical conductivity and excellent mechanical rigidity.

• Stainless Steel Frame: Provides corrosion resistance and dimensional stability in harsh weather conditions.

• High-Temperature Insulators: Guarantee electrical isolation under high current and prolonged thermal exposure.

• Self-lubricating bushings: Reduce mechanical friction, ensuring smooth motion and long-term reliability.

VOCARBON’s proprietary anti-corrosion coating and surface treatment technology further enhance resistance against oxidation, humidity, and contamination — critical factors in outdoor railway environments.

Precision Design and Performance

The VOCARBON Traction Motor Brush Holder is engineered with a spring-loaded contact system that maintains consistent pressure between the brush and the commutator throughout the brush’s wear cycle. This constant force prevents irregular current transfer and reduces sparking, ensuring optimal electrical performance under dynamic conditions such as high acceleration, braking, and vibration.

Each holder assembly undergoes precision machining and fine-tolerance alignment, allowing for stable brush positioning and minimal vibration. The result is uniform current distribution, smoother commutation, and enhanced motor efficiency.

Compatibility and Customization

VOCARBON designs and manufactures brush holders suitable for a wide range of traction motors, including those from leading manufacturers such as Siemens, Alstom, Bombardier, Hitachi, Toshiba, GE, and ABB. Whether for DC traction motors, AC induction drives, or permanent magnet traction systems, VOCARBON provides customized holder configurations tailored to specific mechanical interfaces and electrical parameters.

Customization options include:

• Brush size and geometry

• Spring tension and pressure range

• Mounting dimensions and orientation

• Connection terminal type (bolt, clamp, or quick-connect)

• Material and coating selection based on application environment

This flexibility ensures a perfect fit for both new production lines and retrofit projects, minimizing downtime and guaranteeing seamless replacement of OEM parts.

Tested for Durability and Safety

Each VOCARBON Traction Motor Brush Holder undergoes comprehensive testing and inspection prior to delivery. Our quality control process includes:

• Dimensional accuracy verification

• Electrical resistance and continuity testing

• High-temperature endurance testing

• Vibration and impact resistance assessment

• Corrosion and humidity simulation testing

These rigorous evaluations ensure that every product meets or exceeds the ISO 9001, EN 45545 (fire safety for railway components), and IEC performance standards.

Enhanced Safety and Efficiency

Safety and reliability are critical in traction systems that transport people and goods daily. VOCARBON’s engineering solutions focus on minimizing maintenance downtime and enhancing operational safety. The holder’s mechanical locking mechanism prevents brush displacement during vibration or rotation, while the optimized airflow design aids heat dissipation around the commutator, reducing the risk of overheating.

Additionally, the VOCARBON spring design compensates automatically for brush wear, maintaining stable pressure and reducing the likelihood of uneven brush contact — a common cause of commutator damage in older systems.

Sustainable and Cost-Effective Engineering

VOCARBON is deeply committed to sustainable industrial development. By using advanced materials and precision manufacturing processes, our brush holders extend component lifespan and reduce replacement frequency — resulting in lower lifecycle costs and reduced material waste.

Furthermore, the enhanced efficiency of VOCARBON brush holders contributes to lower power losses in traction systems, directly supporting global efforts toward energy conservation and carbon emission reduction.

Global Applications

VOCARBON Traction Motor Brush Holders are widely applied in:

• High-speed trains and metro systems

• Light rail and tram networks

• Industrial locomotives and mining vehicles

• Electric freight transport systems

• Heavy-duty cranes and automated transport equipment

From Europe to Asia, and from North America to the Middle East, VOCARBON products are trusted by transportation and manufacturing enterprises for their robustness, consistency, and precision engineering.

Why Choose VOCARBON

Choosing VOCARBON means choosing a brand dedicated to excellence in carbon brush and current transmission technology. With a strong R&D foundation and advanced production facilities, VOCARBON provides comprehensive solutions covering carbon brushes, brush holders, current collectors, and conductor rail systems.

Our focus is not only on manufacturing quality products but also on offering technical support, customized engineering services, and after-sales maintenance guidance to ensure long-term reliability of your electrical systems.
