GE Brush Holder GE-Mech-050-125-1

GE Brush Holder GE-Mech-050-125-1

• NEW General Electric brush holder assembly with springs

• EMP Part Number:  EMP PN BM-050-125-1 (formerly known as EMP PN GE-Mech-050-125-1 , Original GE PN 425B736AR001)

• Box internal dimensions

• Height = 1.3 in

• Width = 0.52 in

• Backplate Dimensions (see pictures for more details)

• Internal Diameter = 2.88 in

• External Diameter (“round” portion) = 4.5 in

• 5.25″ between 2 mounting holes, each hole .19″ dia

Used in 5BC49JB1132, 5BC49JB1134, 5BC49JB1144, 5BC49JB1149, 5BC49JB1155, 5BC49JB1160, 5BC48JB1161, 5BC48JB1163, 5BC49JB1168, 5BC49JB6007, 5BC49JB6011A and others

Vocarbon Industrial Carbon can supply a wide range of  brush holders, including traction, transit, and industrial holders.

The stocked range includes the “Calliper” type Double Arm holders for simple slip ring applications through to the popular cast body, constant force, RTR type for DC motor duty.

There are also heavy-duty brush holders for large AC Slip Ring Motors and special “ Spark Plug” Style holders for clutch supply applications.

We can also custom produce brush holders for special applications.

Whatever your needs Morgan Industrial Carbon will endeavour to offer an engineered solution.

View our products on our literature page

Industrial brush holders

Vocarbon Industrial Carbon supply brush holders to suit industrial applications used throughout industries such as:

• Steel manufacturing Aluminium manufacturing

• Paper & Pulp producers Printing Packaging & Plastics

• Open cut and underground mining industry

Our worldwide companies are approved OEM suppliers to companies such as GE - General Electric, Brush, Westinghouse, English Electric, Parsons as well as many others.

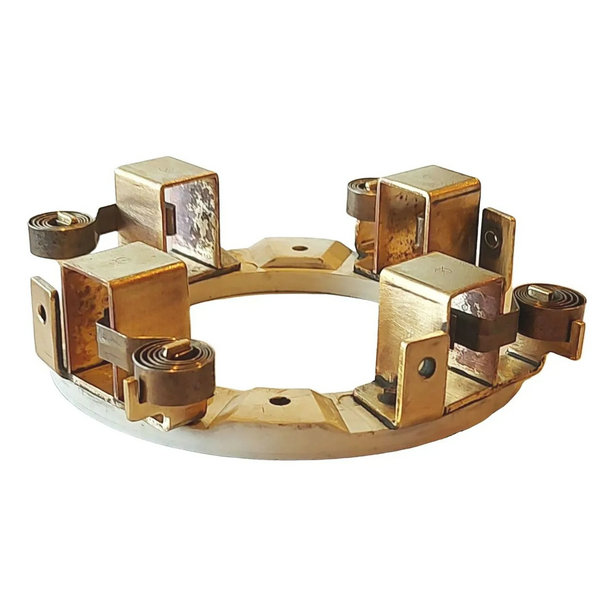

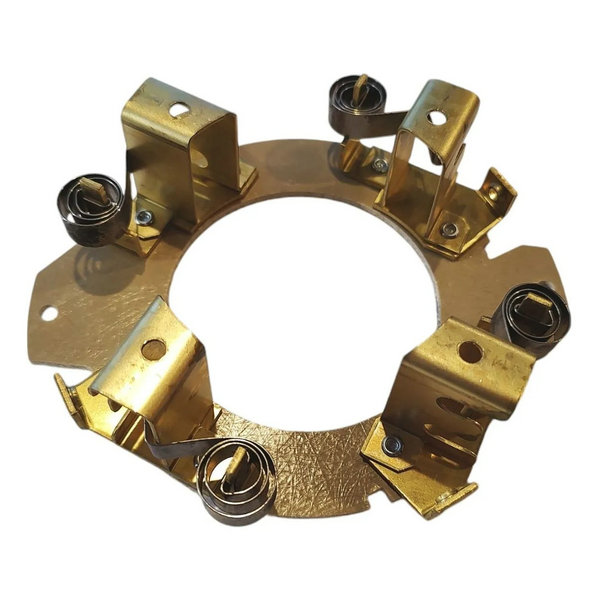

Below are a sample of holders available. Click on the image for an expanded view
