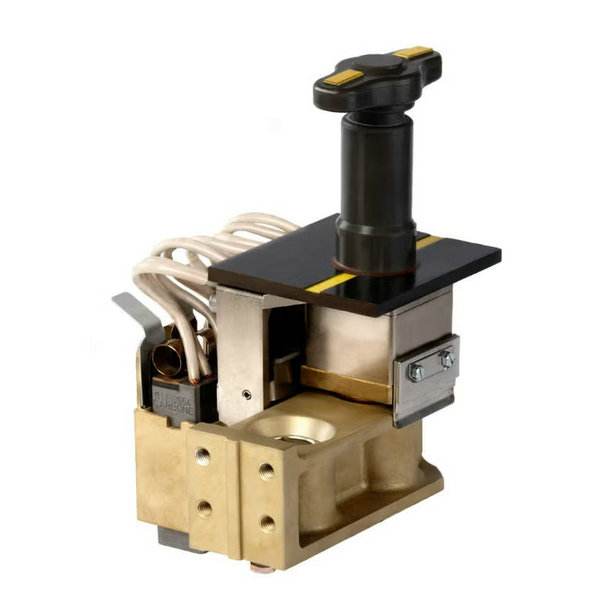

On-Load Removable Carbon Brush Holder – Safe and Efficient Brush Replacement Solution

An On-Load Removable Carbon Brush Holder is an advanced brush holder assembly engineered to enable carbon brush inspection, removal, and replacement without shutting down the machine or disconnecting power. This technology significantly reduces downtime, improves operational efficiency, and enhances safety in critical industrial applications.

These brush holders are commonly used in DC motors, generators, synchronous machines, slip-ring motors, and large rotating electrical equipment operating under continuous or heavy-duty conditions.

Core Design Principle

The key feature of an on-load removable brush holder is its built-in isolation and safety mechanism, which allows the carbon brush to be withdrawn from the commutator or slip ring while current is still flowing, without causing arcing, short circuits, or damage to the machine.

This is achieved through:

• Controlled brush lifting mechanisms

• Arc-suppression or short-circuit bypass structures

• Insulated guide channels

• Secure locking and shielding designs

Key Features and Advantages

1. On-Load Brush Replacement
Carbon brushes can be safely replaced while the machine is running, eliminating production stoppages and costly shutdowns.

2. Enhanced Operational Safety
Designed with insulated components and arc-control systems to protect maintenance personnel and electrical equipment.

3. Stable Electrical Contact
Maintains consistent current transfer during brush removal and reinsertion, preventing voltage drops or sparking.

4. Reduced Maintenance Downtime
Ideal for continuous-operation industries such as power generation, steel plants, cement factories, and rail traction systems.

5. Extended Equipment Life
Prevents commutator or slip ring damage caused by improper brush handling or emergency shutdowns.

Typical Construction and Materials

An on-load removable carbon brush holder usually consists of:

• High-strength metal body (brass, copper alloy, or stainless steel)

• High-temperature insulated brush box

• Precision spring or constant-force spring system

• Safety cover or arc shield

• Quick-release or pull-out brush mechanism

Premium designs may also include visual wear indicators or spring pressure monitoring.

Applications

On-load removable carbon brush holders are widely used in:

• DC motors and generators

• Synchronous motors and generators

• Slip ring motors

• Turbine generators

• Mining and cement equipment

• Steel rolling mills

• Railway traction systems

• Marine propulsion systems

These applications demand high reliability and uninterrupted operation, making on-load brush replacement essential.

Compatibility with Carbon Brushes

These brush holders are compatible with various carbon brush grades, including:

• Electrographite brushes

• Copper graphite brushes

• Metal graphite brushes

• Silver graphite brushes

Proper matching of brush grade, spring pressure, and holder design is critical to ensure low contact resistance, minimal arcing, and long service life.

Maintenance Benefits

• No production interruption

• Faster inspection and servicing

• Lower labor and operational costs

• Improved maintenance planning

Operators can replace worn brushes at optimal intervals instead of waiting for shutdown windows.
