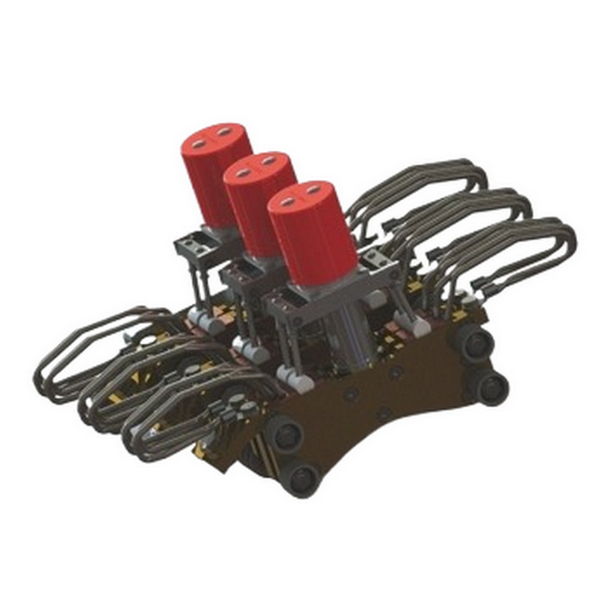

Wind-Turbine Carbon brush holder

Wind Turbine Carbon Brush Holder – Reliable Electrical Contact Solution for Wind Power Systems

A Wind Turbine Carbon Brush Holder is a critical electrical component used in wind power generation systems to ensure stable and continuous current transmission between stationary and rotating parts. It is primarily applied in slip ring assemblies within wind turbine generators, pitch control systems, yaw systems, and grounding devices. Designed to operate under extreme environmental and mechanical conditions, the carbon brush holder plays a vital role in the safety, efficiency, and long-term reliability of wind turbines.

Vocarbon specializes in the design and manufacture of high-performance carbon brush holders tailored specifically for wind energy applications, offering durable, low-maintenance, and OEM-compatible solutions.

Function and Working Principle

In wind turbines, rotational movement between the rotor and stator requires a reliable electrical connection to transmit power, control signals, or grounding currents. The carbon brush holder securely positions the carbon brush against the slip ring surface, maintaining constant contact pressure while compensating for vibration, speed variation, and thermal expansion.

The brush holder ensures:

• Stable electrical conductivity

• Controlled and uniform brush wear

• Reduced electrical noise and arcing

• Protection of slip rings from damage

Vocarbon wind turbine brush holders are engineered to deliver consistent performance even under fluctuating wind speeds and variable load conditions.

Key Design Features

1. High Structural Strength
Manufactured from high-grade copper alloys, brass, or stainless steel, ensuring resistance to mechanical stress, corrosion, and fatigue.

2. Precision Brush Guidance
Accurately machined brush boxes guarantee smooth brush movement and even contact with slip rings, minimizing vibration-related wear.

3. Optimized Spring Pressure System
Constant-force or precision coil springs maintain stable pressure across a wide temperature range, ensuring reliable contact throughout turbine operation.

4. Superior Insulation Performance
High-temperature, high-dielectric insulation materials prevent short circuits and enhance operational safety.

5. Environmental Resistance
Designed to withstand humidity, salt spray, dust, temperature extremes, and offshore conditions.

Typical Applications in Wind Turbines

Wind turbine carbon brush holders are widely used in:

• Generator slip ring systems

• Pitch control systems

• Yaw drive systems

• Grounding and lightning protection systems

• Condition monitoring signal transmission

Vocarbon provides customized solutions compatible with major wind turbine platforms and OEM designs.

Compatibility with Carbon Brush Grades

Depending on application requirements, wind turbine brush holders can be paired with:

• Electrographite carbon brushes (for signal transmission)

• Copper graphite brushes (for power transmission and grounding)

• Silver graphite brushes (for low-resistance, high-reliability applications)

Vocarbon assists customers in selecting the optimal brush grade to achieve low contact resistance, minimal maintenance, and extended service life.

Performance Advantages

• High electrical reliability under variable speeds

• Low wear rate and extended maintenance intervals

• Reduced sparking and electrical interference

• Improved slip ring lifespan

• Lower total cost of ownership

These advantages are essential for wind turbines, where maintenance access is limited and downtime is costly.

Manufacturing and Quality Control

Vocarbon follows strict quality management procedures throughout production, including:

• Dimensional precision inspection

• Spring force and fatigue testing

• Electrical conductivity verification

• Insulation resistance testing

• Environmental durability checks

All wind turbine carbon brush holders are produced to meet or exceed international industrial and wind power standards.

Maintenance and Service Considerations

Vocarbon wind turbine brush holders are designed for:

• Easy brush replacement

• Stable long-term operation

• Reduced inspection frequency

• Safe maintenance in confined nacelle environments

Optional features such as wear indicators and custom mounting interfaces can further simplify servicing.

Why Choose Vocarbon

By choosing Vocarbon wind turbine carbon brush holders, customers benefit from:

• Proven experience in renewable energy applications

• OEM-compatible and custom-engineered designs

• Consistent product quality and long-term supply

• Technical support from application engineers

• Cost-effective alternatives to original components

Vocarbon supports both onshore and offshore wind turbine projects, providing reliable electrical contact solutions for modern wind energy systems.

Conclusion

The Wind Turbine Carbon Brush Holder is an essential component ensuring safe, stable, and efficient electrical transmission within wind power systems. Designed to withstand harsh environmental conditions and continuous operation, it directly impacts turbine reliability and lifecycle cost.

With advanced engineering, premium materials, and industry expertise, Vocarbon delivers high-performance wind turbine carbon brush holders that meet the demanding requirements of today’s renewable energy sector.
