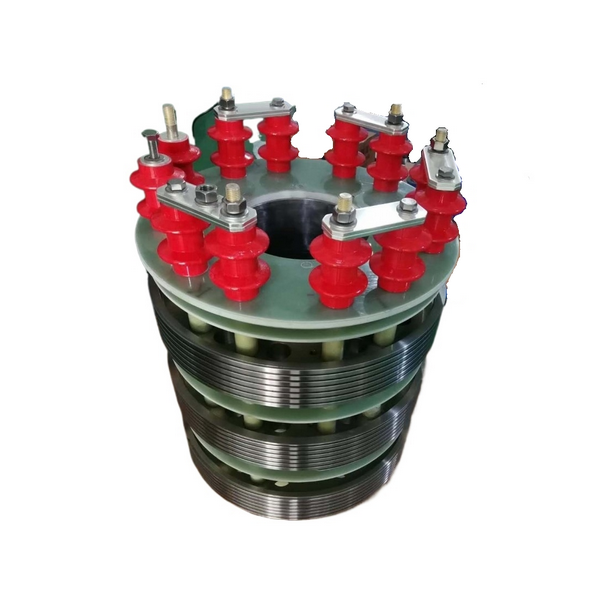

Wind Turbine Generator Slip Ring

Vocarbon Wind Turbine Generator Slip Ring – Maximizing Renewable Energy Transmission

Wind energy systems require seamless transmission of power, signals, and sensor data between the rotating blades and the stationary nacelle. Vocarbon Wind Turbine Generator Slip Rings are engineered specifically for this role—combining high reliability, environmental resilience, and modular customization to deliver optimal performance in any wind energy application.

Why Choose Vocarbon for Wind Turbine Generators?

Wind turbine slip rings face unique challenges: 30 RPM continuous rotation, exposure to dust, moisture, salt spray, and vibration, alongside strict demands for lifespan, maintainability, and electrical performance . Vocarbon addresses these by:

• Advanced brush systems: carbon-metal composites, fiber brushes, or monofilament precious-metal options paired with engineered brushes and holders to prevent grooving, chatter, or arcing .

• Spiral-groove rings: maintain uniform current density and reduce contact wear by guiding current distribution in the brush face .

• Environmentally sealed housings: designed for IP65 to IP67, marine corrosion protection, and salt-laden offshore air .

• Designed for longevity: engineered for over 100 million revolutions with minimal maintenance intervals .

Core Features & Design Innovation

High-Reliability Contact Systems

• Carbon-metal brushes: high durability, proven up to 200 million revolutions .

• Fiber brushes: ideal for low debris and stable signal power delivery .

• Monofilament precious-metal brushes: for ultra-low resistance on signal circuits .

Spiral–Groove Geometry

Rings are machined with spiral grooves to ensure brush pressure remains uniform, avoiding areas of high current density and preventing early wear or arcing.

Hybrid Power + Data Transmission

• Power circuits for pitch control, blade heating, and generator excitation

• Data/signal circuits for anemometers, encoders, CANbus, Ethernet, FORJ fiber optics .

• Optional contactless or fiber-optic rotary units ensure real-time remote monitoring—ideal for offshore installations.

Rugged Housing & Sealing

• Aerospace-grade or marine-grade aluminum/stainless steel casings

• Environmental sealing to IP65–IP67 for dust, water, and salt exposure

• Vibration-resistant design, tested for nacelle vibration and shock scenarios

Modular & Serviceable

• Stackable ring/wiper design for multiple circuits

• Replaceable brush holders with spring force tuning capability

• Maintenance-friendly modules with easy inspection access for preventative servicing (e.g., brush tension checks, ring cleaning)

Industry Applications

🌀 Pitch Control

Transmit high current to pitch motors continuously under rotation—crucial for blade angle adjustments .

🌡️ Blade Heating Systems

Reliable delivery of anti-icing power to blade surfaces in cold climates .

🔄 Yaw & Hub Data Transfer

Enable real-time data feedback from encoders, anemometers, and sensors for nacelle positioning and turbine optimization.

📶 Condition Monitoring

Add fiber-optic rotary joints (FORJ) for high-bandwidth data transmission used in advanced load control and fault detection strategies .

Real-World Performance & Feedback

From the London Array and Gansu Wind Farm examples, operators report that high-performance slip rings dramatically reduce downtime and maintenance cost . One wind technician noted:

“We’ve been having ...rings wearing at an increasing rate... friction chatter... strobbing like horses trotting”

Vocarbon’s engineered contact and brush systems eliminate these issues, addressing spring tension, brush stability, and alignment to prevent chatter-induced wear and grooves .

Technical Specifications

Why Vocarbon Stands Out

1. Precision-Inspired Design – Combines brush holder alignment, groove geometry, and hybrid materials to reach high reliability.

2. Future-Proof Hybrid Options – Supports both power and high-speed data, including fiber optics, in one compact module.

3. Serviceable & Maintainable – Extended maintenance intervals due to brush modules and easy cleaning access.

4. Proven in Harsh Environments – Suitable for onshore and offshore turbines with full corrosion and vibration protection.

5. Lifetime Value – Long operational lifespan minimizes maintenance costs and downtime.

Ordering & Support

To order your Vocarbon Wind Turbine Generator Slip Ring, simply provide:

• Turbine model, rotation speed, and pitch/generator requirements

• Number and type of circuits needed

• Environmental conditions (temperature, humidity, salt exposure)

• Any specialized needs (e.g., fiber optics, integrated sensors)

Our engineering team will develop CAD models, prototype, and deliver within 4–6 weeks. Field support includes installation guidance, spring tension verification, and maintenance training.
