Carbon Brush for Traction Motors: Enhancing Performance in Rail and Electric Vehicles

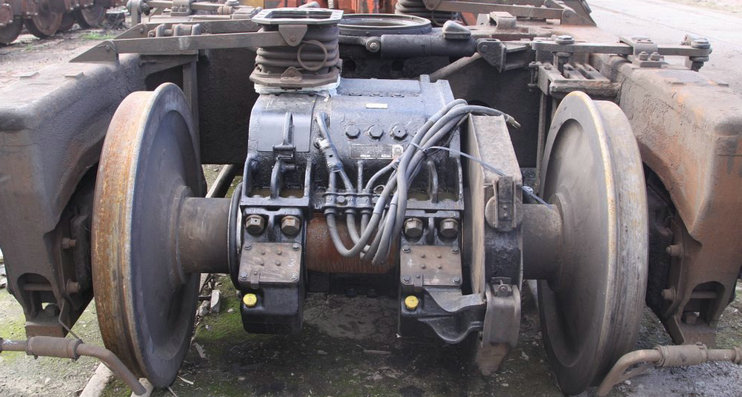

Traction motors are essential components in railways, electric buses, trams, and other electric transportation systems, responsible for converting electrical energy into mechanical motion to propel vehicles. The performance, efficiency, and longevity of these motors are highly dependent on the quality and design of the components used in them, particularly the carbon brush. Carbon brushes are crucial for ensuring a consistent electrical connection between the motor's moving and stationary parts, contributing significantly to the overall reliability and performance of traction motors.

What is a Carbon Brush?

A carbon brush is a small block made from carbon or graphite material that maintains an electrical connection between the rotating part (the rotor) and the stationary part (the stator) of an electric motor. It is used in motors with commutators or slip rings, such as those found in traction motors. The brush ensures that electrical current flows smoothly to the motor, enabling the conversion of electrical energy into mechanical energy. In traction motors, carbon brushes are critical for ensuring high performance, energy efficiency, and motor longevity.

The Role of Carbon Brushes in Traction Motors

1. Reliable Power Transfer: Traction motors rely on the smooth transfer of electrical power to generate motion. Carbon brushes play a critical role in maintaining a consistent electrical connection between the rotor and stator. This ensures that the motor operates efficiently, even at high speeds or under heavy loads, providing the necessary thrust to propel electric trains, trams, or buses.

2. Efficient Motor Operation: Traction motors are typically used in environments where efficiency and performance are critical. Whether in high-speed trains or electric buses, carbon brushes ensure that the motor operates at peak performance by ensuring optimal electrical contact. This leads to smooth acceleration, braking, and consistent speed control, which is essential for transportation systems.

3. High-Current Handling: Traction motors typically handle high currents due to the power demands of vehicles. Carbon brushes used in these applications are specifically designed to handle large electrical loads without overheating, sparking, or causing wear to other motor components. By providing a stable and continuous current, these brushes ensure reliable motor performance even in demanding conditions.

4. Wear Resistance and Durability: Traction motors often operate under extreme mechanical stresses and temperatures. The continuous motion of the motor’s rotor against the commutator or slip ring can lead to friction and wear. Carbon brushes are designed to minimize friction and wear, ensuring that they last longer and maintain optimal contact with the commutator, thereby extending the motor’s overall lifespan.

5. Temperature Resistance: The operational environment of traction motors often involves high temperatures, especially in heavy-duty applications such as high-speed rail or electric buses. Carbon brushes used in traction motors are designed with materials that can withstand these elevated temperatures, maintaining their electrical conductivity and performance even under intense heat.

6. Minimizing Noise and Vibration: Noise and vibration can be an issue in traction motors, especially in systems like trains and electric buses, where smooth operation is essential for passenger comfort. Carbon brushes reduce mechanical friction between moving components, leading to less noise and vibration. This contributes to quieter and more comfortable rides.

7. Energy Efficiency: As traction motors are critical in transportation, energy efficiency is a major consideration. Carbon brushes contribute to better energy efficiency by ensuring a stable electrical connection and reducing power losses. In electric vehicles and trains, where energy consumption is closely tied to operational costs, maintaining high motor efficiency is essential for reducing fuel costs and environmental impact.

8. Reliable Braking: Traction motors often operate in regenerative braking systems, where the motor switches between powering the vehicle and acting as a generator to recover energy during braking. Carbon brushes ensure that the electrical current is smoothly transferred during these processes, contributing to both efficient acceleration and braking.

Vocarbon Carbon Brushes: Perfect for Traction Motors

Vocarbon specializes in manufacturing high-performance carbon brushes that meet the stringent requirements of traction motors used in railways, trams, electric buses, and other electric transportation systems. These brushes are designed to withstand the unique challenges of high-speed, high-load, and high-temperature environments typical of these applications.

1. High Conductivity: Vocarbon carbon brushes are made from high-quality carbon and graphite materials that ensure excellent electrical conductivity, ensuring that the traction motor receives a stable power supply. This enhances the motor’s efficiency, allowing for consistent speed control and reliable operation.

2. Enhanced Wear Resistance: Vocarbon brushes are designed with advanced materials that resist wear and minimize friction, which extends the lifespan of both the brush and the motor components. This results in lower maintenance costs and reduced downtime, making Vocarbon carbon brushes an ideal choice for electric transportation applications.

3. Temperature Resistance: Vocarbon carbon brushes are engineered to operate effectively in high-temperature environments typical of traction motors. Whether in the heating conditions of a high-speed train or the constant use in an electric bus, these brushes are designed to maintain stable performance even under extreme thermal stress.

4. Durability and Longevity: Vocarbon carbon brushes are built for durability, offering a longer service life than standard brushes. This is crucial in traction motors, where constant operation under heavy loads and high speeds can cause excessive wear on the motor components. By using Vocarbon brushes, you can ensure that your traction motor operates at its best for longer periods with fewer replacements.

5. Customization for Different Applications: Vocarbon offers custom-designed carbon brushes for various types of traction motors, ensuring compatibility and optimized performance. Whether it's a heavy-duty electric locomotive, a city tram, or an electric bus, Vocarbon can design brushes tailored to the unique demands of each system.

6. Minimizing Noise and Vibration: The design and material composition of Vocarbon carbon brushes contribute to reduced mechanical noise and vibration, leading to quieter operation in rail and electric transportation systems. This enhances the overall experience for passengers, ensuring a smoother and more comfortable ride.

7. Energy Efficiency: With Vocarbon carbon brushes, traction motors can operate more efficiently, reducing energy losses and improving the overall energy efficiency of the vehicle. This is especially important for electric trains and buses, where energy costs play a significant role in operational expenses.

8. Reduced Maintenance and Downtime: The durability and low-wear properties of Vocarbon carbon brushes help reduce the need for frequent maintenance and repairs, keeping transportation systems running without unnecessary interruptions. This results in cost savings and enhanced reliability for public and private transport operators.

Conclusion

Carbon brushes are integral components in traction motors, ensuring reliable power transfer, efficient motor operation, and extended motor lifespan in electric transportation systems. Whether in high-speed trains, trams, or electric buses, carbon brushes are essential for maintaining optimal performance, reducing wear, and enhancing energy efficiency.

Vocarbon provides high-quality, durable carbon brushes that meet the specific demands of traction motors, ensuring that electric transportation systems run smoothly and efficiently. With superior conductivity, wear resistance, heat tolerance, and energy efficiency, Vocarbon carbon brushes are the ideal solution for improving the performance and longevity of traction motors in electric vehicles and rail systems.
