Carbon Brushes

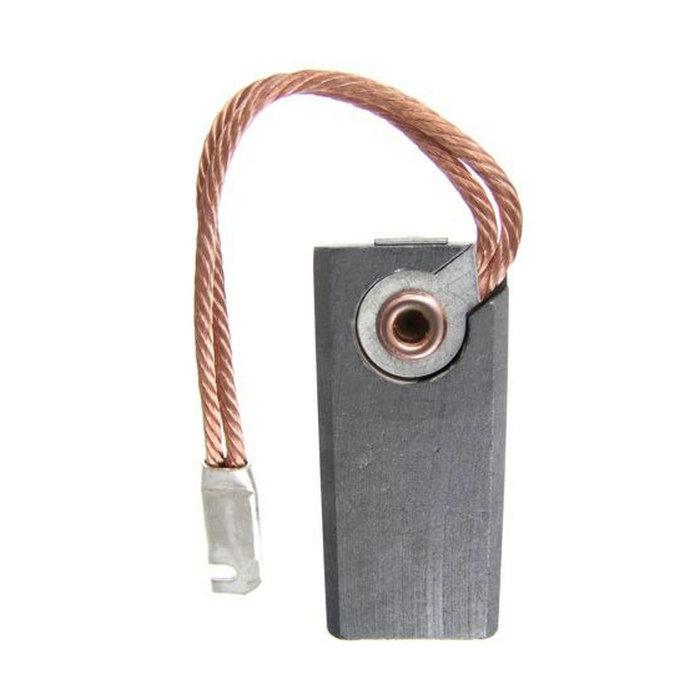

242A413P07 Carbon Brush

Part No. 242A413P07

Buy high-quality 242A413P07 carbon brush, premium copper graphite motor brush with stable conductivity, low spark, long service life. Perfect replacement for industrial DC motors, generators and heavy machinery motors, strict OEM standard, fast delivery, reliable quality.

Material	Copper Graphite
Dimensions	Custom / Standard: 20mm × 16mm × 32mm (W × D × H)
Application	Industrial DC motors, generators, heavy machinery motors, mining equipment, traction motors, OEM replacement carbon brush
Voltage	DC 12V – 440V
Current Density	4 – 12 A/cm²
Speed	Up to 3600 RPM
Hardness	Shore 35 – 55
Grade	Copper Graphite Grade
Connection	Lead wire connection
Lead Type	Flexible copper stranded lead
Spring	Integrated constant force spring

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	242A413P07
Material	Copper Graphite
Dimensions	20mm × 16mm × 32mm
Application	DC motors, generators, heavy industrial machinery
Working Voltage	DC 12V – 440V
Current Density	4 – 12 A/cm²
Max Rotation Speed	3600 RPM
Hardness	Shore 35 – 55
Brush Grade	Copper Graphite
Connection Type	Lead wire connection
Lead Type	Flexible stranded copper lead
Spring	Integrated constant force spring
Key Features	Low spark, stable conductivity, long service life
Quality Standard	OEM replacement standard

Description

The 242A413P07 carbon brush is a high performance copper graphite brush designed as OEM replacement part for DC motors and generators. It features excellent electrical conductivity, low commutation spark, low wear rate and stable performance under heavy load. The built-in constant force spring maintains consistent contact pressure between brush and commutator, reducing noise and extending brush life. This carbon brush is widely used in industrial heavy machinery, mining equipment and traction motors. Each piece is manufactured under strict quality control to meet OEM specifications. We support bulk order and fast worldwide shipping.
