Carbon Brushes

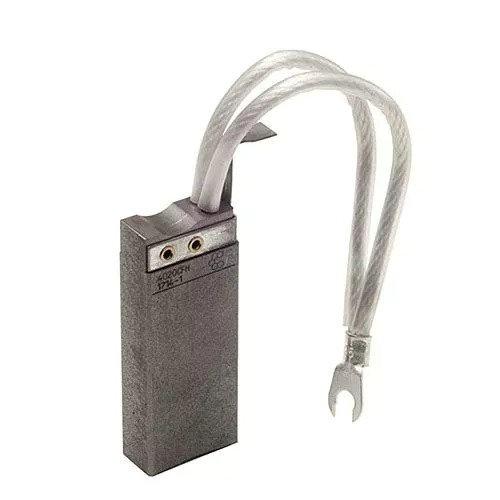

Carbex 4020-CMB7 Carbon Power Brush

Part No. 4020-CMB7

Carbex 4020-CMB7 copper graphite carbon power brush for wind turbine slip ring systems. Dual-purpose design for power transfer and shaft grounding. Excellent conductivity, low slip ring wear, stable patina formation, long service life for GE, Suzlon, Envision onshore & offshore wind turbines. OEM equivalent replacement for wind farm maintenance.

Material	Copper Graphite
Dimensions	40mm × 20mm × 100mm, Shaft Radius R200mm
Application	Wind turbine slip ring power transfer & shaft grounding, compatible with GE, Suzlon, Envision wind turbine generators. Suitable for onshore and offshore wind farms, protects slip rings, ensures stable power transmission and diverts stray shaft current to
Voltage	AC / DC up to 1000V
Current Density	4 – 12 A/cm²
Speed	Max peripheral speed up to 35 m/s
Hardness	Shore 42 – 52
Grade	CMB-7 Copper Graphite Grade
Connection	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly (no built-in spring)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	Carbex 4020-CMB7
Material	Copper Graphite
Dimensions	40mm × 20mm × 100mm, Shaft Radius R200mm
Application	Wind turbine slip ring power transfer & shaft grounding; GE, Suzlon, Envision generators
Working Voltage	AC / DC up to 1000V
Current Density	4 – 12 A/cm²
Max Peripheral Speed	35 m/s
Hardness	Shore 42 – 52
Brush Grade	CMB-7 Copper Graphite Grade
Connection Type	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly, no integrated spring
Key Features	Dual power transfer & grounding function, slip-ring friendly, low friction, long service life, contamination resistant
Quality Standard	Matches Carbex OEM specification

Description

The Carbex 4020-CMB7 Carbon Power Brush is a premium copper graphite brush engineered for wind turbine generator slip ring assemblies. Using CMB-7 grade copper graphite material, it delivers high electrical conductivity and good self-lubricating sliding performance. This brush serves two core functions: reliable power transmission across rotating slip rings and shaft grounding protection to bleed stray shaft currents. It easily forms a protective patina on slip ring surfaces, reducing friction and minimizing slip ring abrasion. The brush maintains consistent performance under extreme wind field conditions including high humidity, temperature fluctuation and dust contamination. Widely fitted on GE, Suzlon and Envision wind turbine generators for both onshore and offshore wind farms. Precision machined to Carbex OEM dimensions for direct drop-in replacement. Strict quality testing ensures low wear rate and extended operational life, cutting wind turbine downtime and maintenance costs. Bulk stock and worldwide shipping available for wind farm operators and renewable energy service providers.
