Carbon Brushes

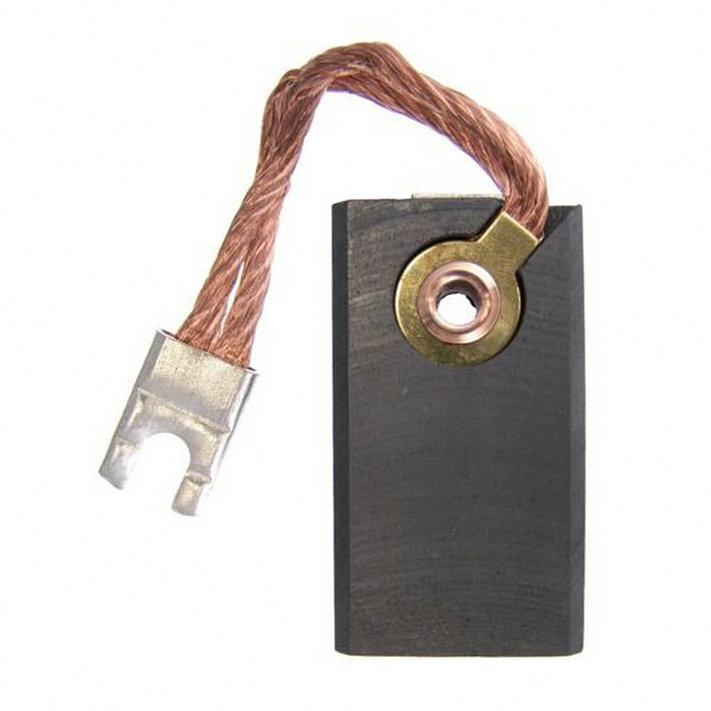

GE 2444711 carbon brush

Part No. 2444711

GE 2444711 electrographitic carbon brush (cross ref REP1634A, Morgan Grade H), single wafer OEM replacement brush for GE heavy-duty DC motors and slip ring equipment. Delivers stable commutation, low sparking, uniform protective patina and minimal commutator wear under continuous heavy industrial loads. Precision machined to GE OEM dimensions, bulk stock available for global industrial maintenance.

Material	Electrographitic, Morgan Grade H (Single wafer)
Dimensions	Imperial: 1.000" (T) × 0.750" (W) × 2.000" (L), Copper shunt lead:4-1/2" Metric:25.4mm × 19.05mm × 5
Application	OEM replacement carbon brush for General Electric heavy-duty DC motors and slip ring assemblies. Cross reference Repco REP1634A, Helwig H703. Widely used in steel rolling mill drives, mining hoist motors, industrial generators and continuous-duty rotating
Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Speed	Max peripheral speed up to 32 m/s
Hardness	Shore 40 – 50
Grade	Morgan Grade H Electrographitic Grade
Connection	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly (no built-in spring)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	GE 2444711
Cross Reference Part	REP1634A, Helwig H703, Morgan Grade H
Material	Electrographitic, Morgan Grade H, single wafer
Imperial Dimensions	1.000" × 0.750" × 2.000", Copper Shunt Lead:4-1/2"
Metric Dimensions	25.4mm × 19.05mm × 50.8mm, Shunt Lead:114.3mm
Application	GE heavy-duty DC motors, slip ring assemblies, steel mills, mining & industrial generators
Working Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Max Peripheral Speed	32 m/s
Hardness	Shore 40 – 50
Brush Grade	Morgan Grade H Electrographitic Grade
Connection Type	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly, no integrated spring
Key Features	Single wafer design, stable commutation, low sparking, heavy load resistant, long service life
Quality Standard	Matches GE OEM specification

Description

The GE 2444711 Carbon Brush is a heavy-duty electrographitic carbon brush, OEM spare part for General Electric DC motors and slip ring assemblies, cross-referenced as Repco REP1634A and Helwig H703. It adopts Morgan Grade H electrographitic material with single wafer construction, engineered for continuous heavy-cycle industrial operation. Made of premium impregnated electrographitic compound, it maintains stable sliding contact and consistent current transfer under variable heavy loads. It forms a uniform protective patina on commutator and slip ring surfaces, reducing sparking, friction and surface abrasion. The bonded flexible stranded copper shunt provides strong mechanical bonding and reliable high-current conduction. Commonly applied in steel rolling mill drives, mining hoist machinery and large industrial generator systems. Precision machined to original GE OEM specifications for direct drop-in replacement. Each batch undergoes strict quality inspection for resistivity, hardness and wear performance. Bulk supply and worldwide shipping available for industrial maintenance contractors and heavy industry operators.
