Carbon Brushes

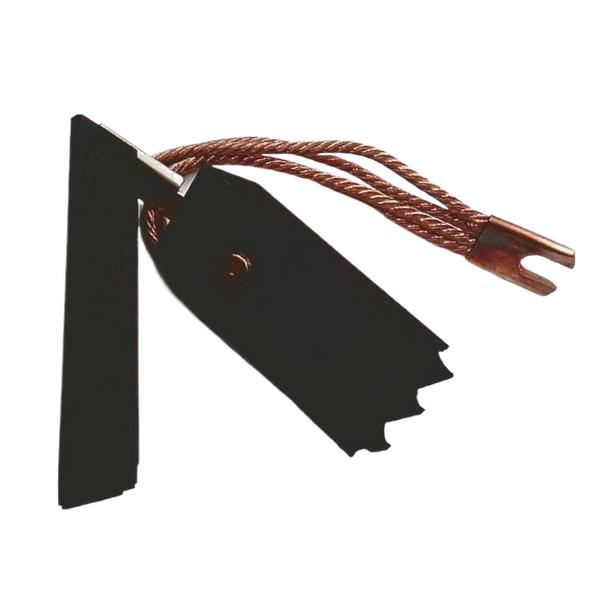

GE 266A984AFP17 Carbon Brush

Part No. 266A984AFP17

GE 266A984AFP17 electrographitic carbon brush (Morgan T573 grade, cross ref REP1053W), OEM replacement for GE heavy-duty DC motors. Dual wafer split brush construction delivers stable commutation, low sparking, uniform protective patina and minimal commutator wear under heavy fluctuating loads. Precision machined to GE OEM dimensions, bulk stock available for global industrial maintenance projects.

Material	Electrographitic, Morgan T573 Grade (2 wafers dual split brush)
Dimensions	Imperial:1.250" × 1.250" × 3.500", Copper shunt lead:5" Metric:31.75mm × 31.75mm × 88.9mm, Shunt lea
Application	OEM replacement carbon brush for General Electric large heavy-duty DC motors, steel rolling mill main drives, mine hoist motors, heavy industrial generators. Cross reference Repco REP1053W, Morgan T573 grade, designed for continuous heavy cyclic load, hig
Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Speed	Max peripheral speed up to 32 m/s
Hardness	Shore 40 – 50
Grade	T573 Electrographitic Grade
Connection	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly (no built-in spring)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	GE 266A984AFP17
Cross Reference Part	REP1053W, Morgan T573
Material	Electrographitic, Morgan T573 Grade, 2 wafers dual split brush
Imperial Dimensions	1.250" × 1.250" × 3.500", Copper Shunt Lead:5"
Metric Dimensions	31.75mm × 31.75mm × 88.9mm, Shunt Lead:127mm
Application	GE heavy-duty DC motors, steel rolling mills, mine hoists, large industrial generators
Working Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Max Peripheral Speed	32 m/s
Hardness	Shore 40 – 50
Brush Grade	T573 Electrographitic Grade
Connection Type	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly, no integrated spring
Key Features	Dual wafer split design, stable commutation, low sparking, heavy load resistant, long service life
Quality Standard	Matches GE OEM specification

Description

The GE 266A984AFP17 Carbon Brush is a heavy-duty electrographitic carbon brush with Morgan T573 grade material, original OEM spare part for General Electric large DC motors, cross-referenced as Repco REP1053W. It is built as a dual-wafer split brush assembly, engineered for high-torque, heavy cyclic load applications in steel, mining and power industries. Made of premium impregnated electrographitic carbon compound, it maintains consistent sliding contact and stable current transfer under frequent load fluctuations. It forms a uniform protective patina on commutator surfaces, reducing sparking, friction and commutator abrasion. The bonded flexible stranded copper shunt ensures robust mechanical attachment and steady high-current conduction. Commonly used in steel rolling mill main drives, mining hoist motors and large industrial generator systems. Precision machined to original GE OEM specifications for direct drop-in replacement. Every batch undergoes strict quality inspection for resistivity, hardness and wear performance. Bulk supply and worldwide shipping available for industrial maintenance contractors and heavy industry operators.
