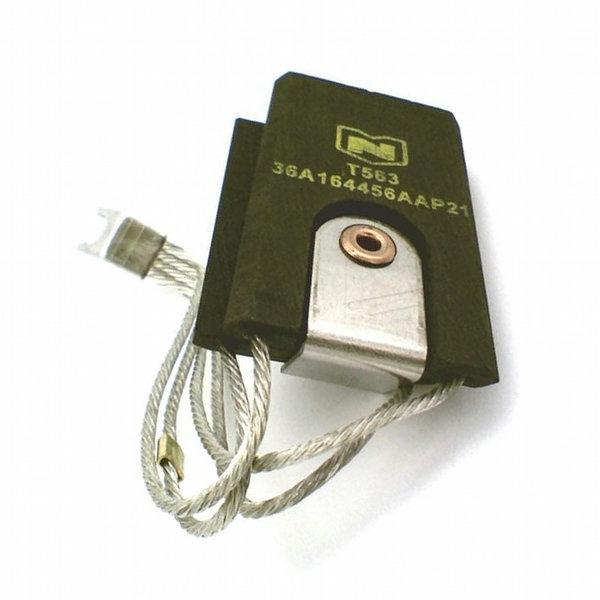

GE 36A164456AAP21 Carbon Brush

Part No. 36A164456AAP21

GE 36A164456AAP21 electrographitic carbon brush (Morgan T563 grade, cross ref REP1050W), dual wafer split OEM replacement brush for GE heavy-duty DC motors and generators. Delivers stable commutation, low sparking, uniform protective patina and minimal commutator wear under continuous heavy industrial loads. Precision machined to GE OEM dimensions, bulk stock available for global industrial maintenance.

Material	Electrographitic, Morgan T563 Grade (2 wafers dual split brush)
Dimensions	Imperial:0.625" (T) × 1.250" (W) × 2.125" (L), Copper shunt lead:4.000" Metric:15.875mm × 31.75mm ×
Application	OEM replacement carbon brush for General Electric heavy-duty DC motors and industrial generators. Cross reference Repco REP1050W, Terminal Style U-0.218" bent, Figure 90VE, 20/25 bevels. Widely used in steel rolling mill drives, mining hoist motors, pulp
Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Speed	Max peripheral speed up to 32 m/s
Hardness	Shore 40 – 50
Grade	Morgan T563 Electrographitic Grade
Connection	Shunt wire bonded connection
Lead Type	Flexible stranded tinned copper shunt lead, U-0.218" bent terminal
Spring	External separate spring assembly (no built-in spring)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	GE 36A164456AAP21
Cross Reference Part	REP1050W, Morgan T563
Material	Electrographitic, Morgan T563 Grade, 2 wafers dual split brush
Imperial Dimensions	0.625" × 1.250" × 2.125", Copper Shunt Lead:4.000"
Metric Dimensions	15.875mm × 31.75mm × 53.975mm, Shunt Lead:101.6mm
Terminal Style	U-0.218" bent terminal, Figure 90VE, 20/25 bevels
Application	GE heavy-duty DC motors, industrial generators, steel mills, mining, pulp & paper mills
Working Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Max Peripheral Speed	32 m/s
Hardness	Shore 40 – 50
Brush Grade	Morgan T563 Electrographitic Grade
Connection Type	Shunt wire bonded connection
Lead Type	Flexible stranded tinned copper shunt lead, bent U terminal
Spring	External separate spring assembly, no integrated spring
Key Features	Dual wafer split design, stable commutation, low sparking, heavy load resistant, long service life
Quality Standard	Matches GE OEM specification

Description

The GENERAL ELECTRIC 36A164456AAP21 Carbon Brush is a heavy-duty electrographitic carbon brush, OEM spare part for General Electric large DC motors and generators, cross-referenced as Repco REP1050W. It adopts Morgan T563 electrographitic material with dual-wafer split construction, engineered for continuous heavy-cycle industrial operation. Made of premium impregnated electrographitic carbon compound, it maintains stable sliding contact and consistent current transfer under variable heavy loads. It forms a uniform protective patina on commutator surfaces, reducing sparking, friction and commutator abrasion. The bonded flexible tinned stranded copper shunt with bent U terminal provides strong mechanical bonding and reliable high-current conduction. Commonly applied in steel rolling mill drives, mining hoist machinery and pulp & paper mill production systems. Precision machined to original GE OEM specifications for direct drop-in replacement. Each batch undergoes strict quality inspection for resistivity, hardness and wear performance. Bulk supply and worldwide shipping available for industrial maintenance contractors and heavy industry operators.
