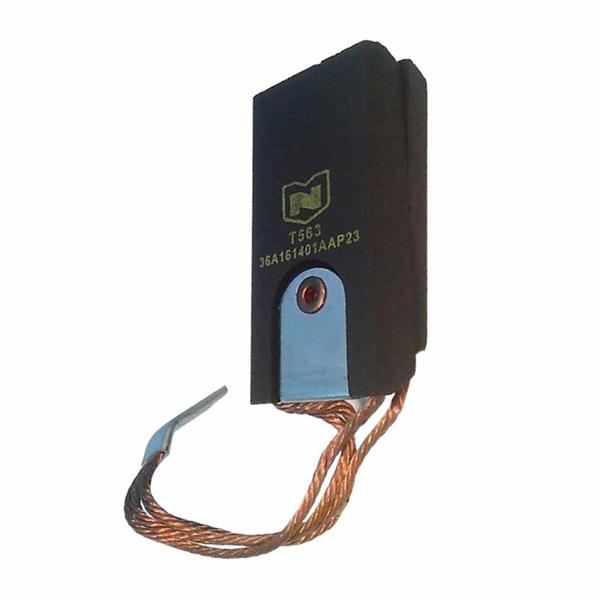

National Carbon 36A161401AAP23 Carbon Brush

Part No. 36A161401AAP23

National Carbon 36A161401AAP23 Carbon Brush is heavy-duty solid single-block T563 electro-graphite carbon brush sized 0.75 × 1.5 × 2.75 inch. It comes with 4” tinned copper braided shunt and 9S hammer plate terminal. Designed for GE large industrial DC motors and generators, it delivers reliable current transfer, low sparking and long service life under heavy fluctuating loads. Ideal OEM replacement carbon brush for steel mill, mining and paper mill DC motor maintenance.

Material	Grade T563 electro-graphite carbon, resin impregnated, excellent film-forming property
Dimensions	- Brush size: 0.75” (Thickness) × 1.50” (Width) × 2.75” (Length) - Shunt length: 4 inch - Constructi
Application	National Carbon / GE 36A161401AAP23 T563 carbon brush for heavy-duty industrial DC motors and generators. Widely used in steel rolling mills, mining shovels, draglines, paper mill drives and large industrial rotating machinery. OEM replacement consumable
Voltage	Medium voltage DC industrial motor & generator systems
Current Density	Engineered for high continuous current density for heavy variable-load DC duty
Speed	Suitable for medium-high peripheral speed of large DC motor commutators
Hardness	Medium hardness T563 electro-graphite grade, builds stable protective commutator
Grade	T563 National Carbon electro-graphite grade
Connection	9S hammer plate metal terminal connection
Lead Type	4-inch multi-strand tinned copper braided shunt lead
Spring	Brush spring sold separately, compatible with original GE brush holder assembly

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Part Number	36A161401AAP23
Product Type	Heavy-duty Industrial DC Motor Carbon Brush
Brand	National Carbon, GE Compatible
Carbon Grade	T563 Electro-graphite
Brush Construction	Single Solid Block
Brush Dimensions	0.75” × 1.50” × 2.75”
Shunt Lead	4" Multi-strand Tinned Copper Braided Shunt
Terminal Style	9S Hammer Plate Metal Terminal
Working System	Medium Voltage DC Motors & Generators
Main Application	Steel rolling mill, mining shovel, dragline, paper mill, heavy industrial rotating equipment
Key Features	Smooth commutation, low sparking, stable commutator film, long service life
Included Items	Carbon brush with copper shunt & hammer plate terminal (spring not included)
Usage	Heavy-duty industrial DC motor & generator maintenance spare part
