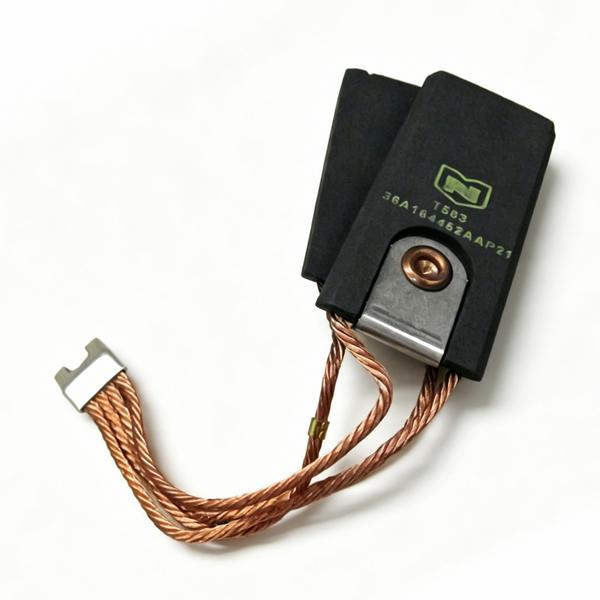

National Carbon 36A164452AAP21 Carbon Brush T563 – 2 Wafer Industrial Motor Brush

Part No. 36A164452AAP21

National Carbon 36A164452AAP21 Carbon Brush T563 is a heavy-duty 2-wafer split electro-graphite carbon brush sized 0.875 × 1.50 × 3.25 inch. Grade T563 material paired with twin wafer construction reduces cross-current and delivers superior commutation performance for large GE industrial DC motors and generators. Equipped with long tinned copper braided shunt and hammer plate terminal. Ideal OEM replacement brush for steel, mining and heavy rolling mill equipment maintenance.

Material	Grade T563 electro-graphite carbon, 2-wafer split construction, excellent film-forming capability
Dimensions	- Brush size: 0.875” × 1.500” × 3.250” - Construction: 2 Wafer (split twin block design) - Shunt len
Application	National Carbon / GE 36A164452AAP21 T563 two-wafer carbon brush for heavy-duty industrial DC motors and generators. Widely used in steel mills, mining shovels, draglines, rolling mill drives, large industrial rotating equipment. 2-wafer design minimizes c
Voltage	Medium voltage DC industrial motor & generator systems
Current Density	Engineered for high continuous current density for heavy variable load DC duty
Speed	Suitable for high peripheral speed large DC motor commutators
Hardness	Medium hardness T563 electro-graphite grade, stable commutator film, low commuta
Grade	T563 National Carbon / Morgan electro-graphite grade, 2 wafer construction

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Part Number	36A164452AAP21
Product Type	2-Wafer Industrial DC Motor Carbon Brush
Brand	National Carbon, GE Compatible
Carbon Grade	T563 Electro-graphite
Brush Construction	2 Wafer / Split Twin Block
Brush Dimensions	0.875” × 1.500” × 3.250”
Shunt Lead	5.75" Tinned Multi-strand Copper Braided Shunt
Terminal Style	Bent U-type Hammer Plate Metal Terminal
Working System	Medium Voltage DC Motors & Generators
Main Application	Steel rolling mill, mining dragline, shovel, heavy industrial rotating equipment
Key Features	2-wafer cross-current suppression, low sparking, stable commutator film, long wear life
Included Items	Carbon brush with copper shunt & hammer plate terminal (spring not included)
Usage	Heavy-duty industrial DC motor & generator maintenance spare part

Description

National Carbon 36A164452AAP21 Carbon Brush T563 – 2 Wafer Industrial Motor Brush is a premium two-wafer split electro-graphite carbon brush built for General Electric large industrial DC motors and generators. It features T563 carbon grade with 0.875” × 1.500” × 3.250” dimension and twin wafer split design, which effectively suppresses cross-currents, reduces sparking and delivers stable commutator film under heavy fluctuating loads. This carbon brush comes with a heavy-duty 5.75-inch tinned copper braided shunt and bent U-style hammer plate terminal for secure installation inside original GE brush holders. The resin-impregnated electro-graphite material provides consistent conductivity, low friction and extended service life in harsh industrial environments. It is widely deployed in steel rolling mills, mining draglines, shovels and heavy industrial rotating machinery. Precision machined to OEM dimensional specifications, it is a direct drop-in replacement part for scheduled maintenance and overhaul of large GE DC motors and generators.
