Slip Rings

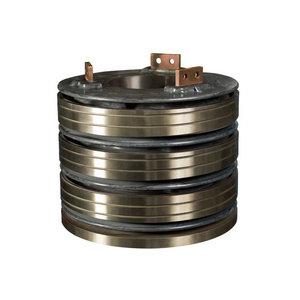

Power Slip Rings for Wind Generators

Power slip rings for wind generators — transmit power & signal across rotating hub/nacelle: DFIG excitation class (200–1,500 A/ring), pitch power tracks (80 A/phase @ 400/690 VAC, silver braid brushes), small-turbine class. Maintenance-free, >100M-rev life, IP54–67. Verify current, circuits & turbine model.

Application	Power slip rings for wind generators — transmit high power (and control/data signals) between the rotating hub/nacelle and stationary tower: - DFIG generator slip rings: excitation power transfer, 200–1,500 A per ring (ByTune) - **Pitch contr
Voltage	Pitch tracks 400/690 VAC
Current Density	Per class — DFIG 200–1,500 A/ring; pitch 65–100 A (PCS) / up to 80 A per pha
Speed	Per model — e.g., 30 rpm (hub class) to 250 rpm (small turbine class). *(per
Grade	Silver-graphite / copper-graphite power brushes; noble-metal fiber brush (lo

Compatible Models

**DFIG wind generators** (200–1 500 A per ring excitation class) — verify **Pitch control systems** (80 A/phase @ 400/690 VAC Conductix PCS-class) — verify **Small wind turbines** (500 W–2 kW MW-series 5–30 A yaw class) — verify **Hybrid wind slip rings** (power + CAN/Ethernet/Profibus/fiber IP65/67) — verify

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Power Slip Rings for Wind Generators
Specification	Value
Product Type	Power slip ring (wind generator)
Duty Classes	DFIG generator (200–1,500 A/ring); pitch (80 A/phase @ 400/690 VAC); small turbine (5–30 A)
Brush	Silver-graphite / copper-graphite; noble-metal fiber brush
Ring	Silver / copper / noble-metal plated
Life	>100 million revolutions (PCS-class)
Maintenance	No lubrication / no maintenance
Protection	IP54–IP67; C4/C5 anti-corrosion
Temp	−40 to +80 °C
Signal	CAN, Profibus, Ethernet, fiber-optic
Connection	Terminal or cable clamp (M20–M25); signal per model

* Listing based on ByTune, Torquety, Conductix, Moog, NBG and channel data. Fitment to be confirmed per model.

Compatible Models

This Power Slip Rings for Wind Generators is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

Power slip rings for wind generators — the rotating power-transfer interface of wind turbines: carry high power plus control/data signals from the rotating hub/nacelle to the stationary tower, for DFIG generators, pitch control and small turbines.ByTune

Duty Classes

DFIG generator: 200–1,500 A per ring (excitation rings)
Pitch control: up to 80 A per phase @ 400/690 VAC (silver braid brushes on silver rings); Conductix PCS-class 65–100 A @ 600 V
Small turbines: 5–30 A yaw/power

Reliability

Brush/ring life > 100 million revolutions; no lubrication, no maintenance (PCS-class)
Noble-metal fiber brush: low contact force, very low wear, high current density (Moog)
IP54–IP67, C4/C5 anti-corrosion, −40 to +80 °C
Signal: CAN, Profibus, Ethernet, fiber-optic
