Carbon Brush Holders

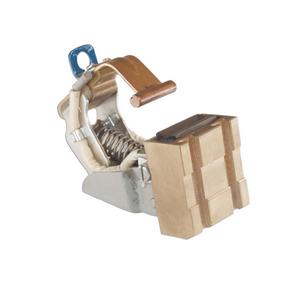

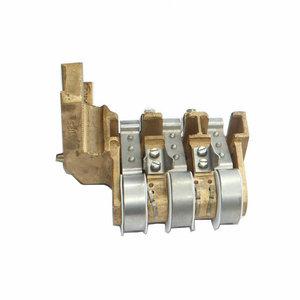

Railway Applications Carbon Brush Holders

Railway applications carbon brush holders — brass/bronze insulated holders for traction motors, slip-ring alternators, auxiliary drives and grounding brush gear; spring-loaded, constant-pressure. Fits GE-752, EMD D29/D31/D77, ZD/ZQ, HXD & metro/EMU/tram drives; verify per machine.

Material	High-grade brass / bronze, precision-cast copper holder bodies with insulated studs
Application	Carbon brush holders across railway applications — traction motors (commutator), traction alternators/generators (slip rings), auxiliary drives and grounding brush gear:Traction: DC traction motors (commutator contact) — locomotives, EMU, metro, t

Compatible Models

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Railway Applications Carbon Brush Holders
Specification	Value
Product Type	Carbon brush holder (railway applications)
Material	Brass / bronze / precision-cast copper, insulated
Duty Classes	Traction (commutator); slip-ring (alternator/MA); auxiliary; grounding
Configurations	Single/double/triple; leg; flange; rocker; tubular; telescopic
Auxiliary Grade Ref	R783-class (Morgan rail guide)
Grounding	ERCU / earth-return class (Mersen)
Fits	GE-752; EMD D29/D31/D77; ZD/ZQ; HXD; metro/EMU/tram — verify
Size	Per holder — blocked

* Listing based on VOCarbon, Morgan rail application guide, Mersen, Casram and channel data. Fitment to be confirmed per machine.

Compatible Models

This Railway Applications Carbon Brush Holders is designed as a direct replacement for the following machine models and series:

Locomotive traction: GE **GE-752** EMD **D29/D31/D77** — verify CRRC-class DC traction: **ZD109B / ZD106E / ZQ-series** — verify **HXD** electric-locomotive systems — verify Metro / EMU / tram auxiliary drives (compressors MA sets pumps blowers) — verify Traction alternator slip-ring sets (motor-alternator) — verify **Always verify**: brush-box size mounting and machine

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

Railway applications carbon brush holders — brush-holder solutions across the full rail electrical spectrum: traction motors (commutator), traction alternators & motor-alternator sets (slip rings), auxiliary drives and grounding brush gear. High-grade brass/copper bodies hold brushes under spring pressure for stable contact in demanding rail duty.vocarbon.comООО ВИК-Энерго

Duty Classes

Traction (DC motors, commutator): GE-752, EMD D29/D31/D77, ZD/ZQ, HXD-class
Slip ring (alternators / MA sets): field excitation contact
Auxiliary (compressors, pumps, AC, blowers): low-current-density duty (R783-class grade per Morgan rail guide)
Grounding (ERCU / earth return): ground brush holders with cable terminals (Mersen rail class)
