Carbon Brush Holders

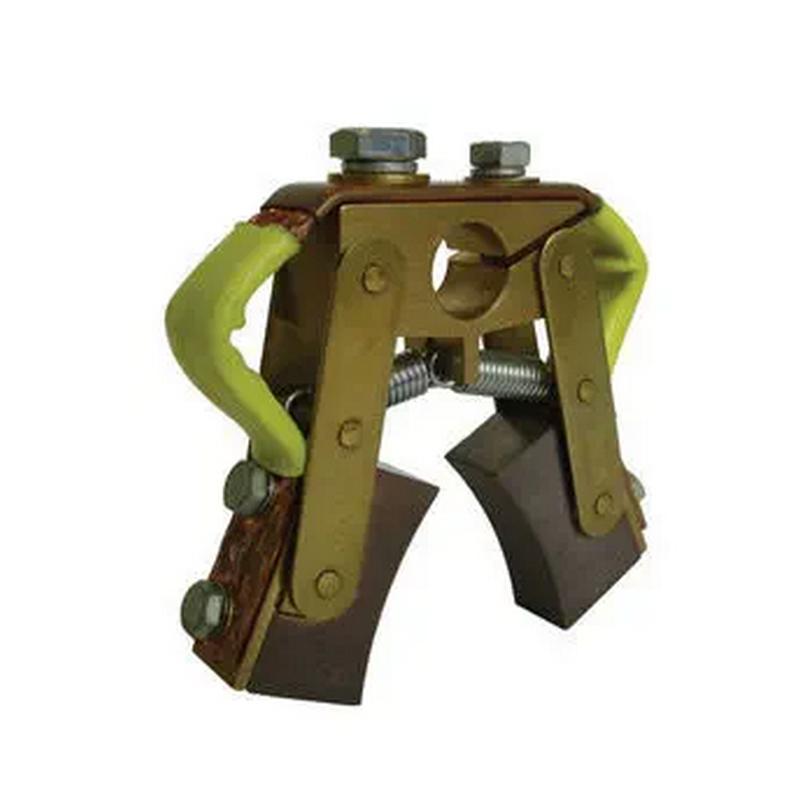

Slip ring brush holder AC series

Part No. Slip ring brush holder AC series

Slip ring brush holder AC series is a complete brush holder assembly specially engineered for AC slip ring systems of wound rotor motors and synchronous AC generators. It uses reinforced phenolic insulated housing with stainless steel constant force spring, available in single leg and double leg mounting versions. This series supports multiple standard carbon brush sizes, delivers consistent brush contact pressure, reduces sparking and protects slip rings. It is widely used for AC motor and gene

Material	High-strength reinforced phenolic resin, high dielectric strength, heat & vibration resistant
Dimensions	Single or double leg mounting optional
Application	AC series slip ring brush holder for AC wound rotor motors, synchronous generators, alternators, wind turbine slip ring assemblies. Designed for AC rotating equipment, widely used in power plant, mining, cement plant and industrial motor overhaul, OEM rep
Voltage	Low & medium voltage AC rotating machinery
Current Density	Optimized for continuous AC excitation current
Speed	Suitable for rated continuous rotating speed of AC generators & wound rotor moto
Hardness	Insulation housing: High rigidity, stable under thermal cycling and vibration

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Name	Slip ring brush holder AC series
Product Type	AC Slip Ring Brush Holder Assembly
Housing Material	Reinforced Phenolic Resin
Spring Type	Stainless Steel Constant Force Spring
Terminal	Copper Alloy / Silver Plated Copper Optional
Mounting Structure	Single leg / Double leg optional
Brush Slot Size	Multiple standard sizes available
Connection Method	Screw Terminal
Main Application	Wound rotor AC motor, synchronous generator, alternator slip ring
Key Features	High insulation, anti-vibration, low sparking, various mounting choices
Usage	Heavy industrial AC rotating equipment maintenance & replacement spare part

Description

Slip ring brush holder AC series is dedicated brush holder assemblies for AC slip ring applications including wound rotor induction motors and synchronous alternators. The housing is made of high-performance reinforced phenolic resin, offering outstanding insulation, heat resistance and mechanical strength to withstand harsh industrial operating environments. Equipped with stainless steel constant force springs, the AC series brush holder keeps uniform pressure on carbon brushes during continuous rotation, minimizing electrical sparking, lowering slip ring wear and extending service life of both carbon brushes and slip rings. Copper or silver-plated copper terminals ensure stable electrical conductivity and reduce heat buildup under AC excitation load. This series supports single-leg and double-leg mounting configurations to fit different installation requirements. Multiple standard brush slot dimensions are available to match most common AC slip ring carbon brushes. It is a reliable OEM replacement spare part for power plants, mining equipment, cement factories and other heavy industrial AC rotating machinery repair.
