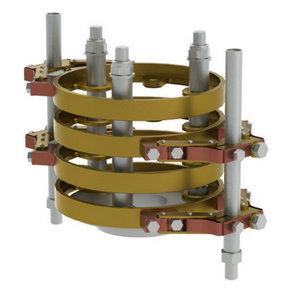

440 Vac Motor Startor Single Phase Slip Ring Assembly

Part No. 440 Vac Motor Startor Single Phase Slip Ring Assem

440 VAC single-phase slip ring assembly for motor starter duty — carries rotor current from a wound-rotor motor to the external starting resistance via brushes for low-current, high-torque starting. Ring count, bore and circuit details to be confirmed per SKU.

Application	Slip-ring assembly for the motor starter circuit — in wound-rotor (slip-ring) motors, the rotor winding connects to the external starting resistance through the slip rings and brushes, giving low starting current and high starting torque; also used wh
Voltage	440 V AC (user-provided) — standard rating class for wound-rotor motors (380

Compatible Models

Wound-rotor (slip-ring) motors with resistance starters — 440 V rated Slip-ring motor starter systems (rotor resistance / LRS-type) Single-phase wound-rotor machine starting circuits (rare — confirm application)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

440 VAC Motor Starter Single-Phase Slip Ring Assembly
Specification	Value
Product Type	Slip ring assembly for motor starter circuit
Voltage	440 V AC (user-provided)
Material	Not specified — confirm (copper rings typical)
Ring Count	Not specified — confirm (3 for 3-phase rotor; single-phase 1–2 channels)
Dimensions	Not specified — confirm (ring OD / bore / spacing)
Application	Wound-rotor (slip-ring) motor resistance starters; slip-ring motor starter systems
Connection	Rotor winding → rings → brushes → external starting resistance
Speed	Not specified — confirm

* Voltage user-provided; application context cross-verified from slip-ring motor starter products. Ring count, dimensions and circuit details pending confirmation.

Compatible Models

This 440 Vac Motor Startor Single Phase Slip Ring Assembly is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

440 V AC slip ring assembly for motor starter circuits — part of the wound-rotor (slip-ring) motor starting system: the rotor winding connects to the external starting resistance through the slip rings and stationary brushes, enabling controlled starting current and high starting torque.Alibaba.com

How It Works in the Starter Circuit

Rotor windings → slip rings → brushes → external starting resistance
Resistance limits starting current; resistance is cut out as the motor accelerates
Rings are shorted/isolated at running speed per the starter scheme

Typical Duty

Wound-rotor (slip-ring) motors with resistance starters (440 V class)
Slip-ring motor starter systems (rotor resistance / LRS-type)
Special single-phase wound-rotor machine starting circuits

Before Ordering — Confirm

Ring count (3 for three-phase rotor; single-phase = 1–2 channels) — confirm application
Ring OD / bore and mounting
Rotor voltage and current from the motor nameplate
Brush gear spacing and starter scheme (resistor shorting)
