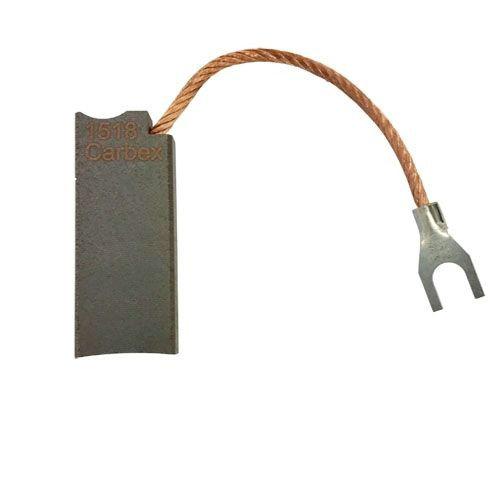

Carbex 7090-40-SW-KIT Carbon Sandwich Grounding Brush

Part No. 7090-40-SW-KIT

Carbex 7090-40-SW-KIT sandwich carbon grounding brush kit for wind turbine shaft grounding. Dual-layer sandwich structure combines silver graphite for ultra-low contact resistance and electrographite for self-lubrication. Safely bleeds stray shaft currents to ground, prevents bearing electrical damage, stable performance in harsh offshore environments. Direct drop-in replacement equivalent to Schunk S13/F19, fully assembled kit ready for installation.

Material	Sandwich composite: Silver Graphite + Electrographite
Dimensions	20mm × 8mm × 64mm, Shaft Radius R70mm, insulated copper lead length:120mm
Application	Wind turbine generator shaft grounding, compatible with Siemens, Nordex, Senvion, Loher, Winergy, VEM, Vestas wind turbines. Divert stray shaft currents, eliminate bearing electrical pitting & erosion, protect generator bearings for onshore and offshore w
Voltage	AC / DC up to 1000V
Current Density	2 – 6 A/cm²
Speed	Max peripheral speed up to 30 m/s
Hardness	Shore 35 – 45
Grade	Sandwich Silver Graphite Composite Grade
Connection	Cable bonded assembly connection
Lead Type	Flexible insulated copper lead, pre-assembled within full kit
Spring	Pre-installed constant force spring, complete ready-to-fit kit

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	Carbex 7090-40-SW-KIT
Material	Sandwich composite: Silver Graphite + Electrographite
Dimensions	20mm × 8mm × 64mm, Shaft Radius R70mm
Copper Lead Length	120mm
Application	Wind turbine shaft grounding, Siemens, Nordex, Senvion, Loher, Winergy, VEM, Vestas generators
Working Voltage	AC / DC up to 1000V
Current Density	2 – 6 A/cm²
Max Peripheral Speed	30 m/s
Hardness	Shore 35 – 45
Brush Grade	Sandwich Silver Graphite Composite Grade
Connection Type	Cable bonded assembly connection
Lead Type	Flexible insulated copper lead (pre-assembled kit)
Spring	Pre-installed constant force spring, full kit assembly
Equivalent OEM Part	Replaces Schunk S13/F19
Key Features	Sandwich dual-layer design, low contact resistance, bearing stray current protection, offshore resistant, ready-to-install kit
Quality Standard	Matches Carbex OEM specification

Description

The Carbex 7090-40-SW-KIT Carbon Sandwich Grounding Brush is a complete pre-assembled shaft grounding brush kit specially engineered for wind turbine generators. It adopts advanced sandwich composite construction: silver graphite layer delivers ultra-low contact resistance for reliable current diversion, while electrographite layer provides excellent self-lubricating sliding performance to reduce shaft wear. This grounding brush creates a dependable conductive path to divert harmful stray shaft currents away from generator rolling bearings to ground. It effectively avoids electrical pitting, grooving and premature bearing failure, greatly cutting wind turbine downtime and expensive wind farm maintenance costs. The brush block is pre-machined with R70mm radius profile to perfectly match generator shaft surface. The kit comes fully assembled with sandwich carbon brush block, constant force spring and insulated flexible copper lead. Widely used on Siemens, Nordex, Senvion, Loher, Winergy, VEM and Vestas onshore & offshore wind turbines. It serves as drop-in replacement for Schunk S13/F19. Maintains consistent low wear rate and stable grounding performance under high humidity, temperature fluctuation and dusty wind field conditions. Strict quality inspection, bulk stock and worldwide shipping available for wind farm maintenance and OEM service customers.
