Carbon Brushes

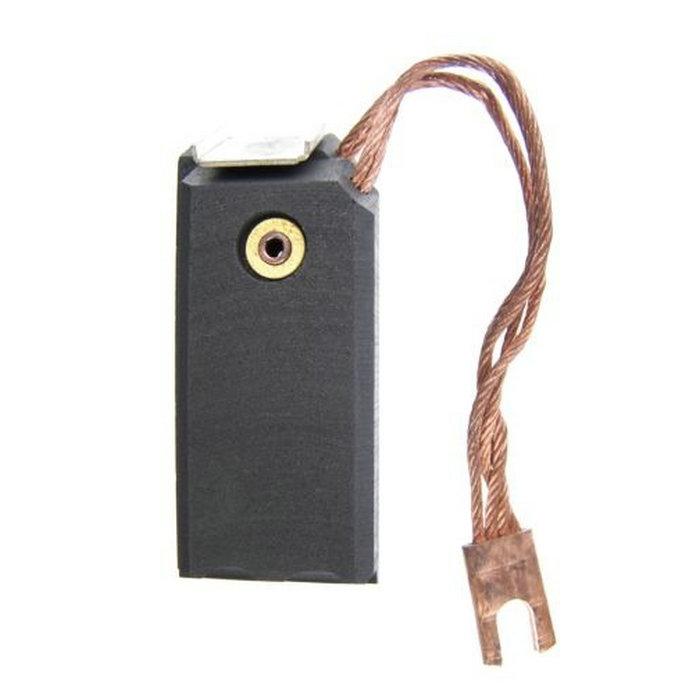

GE 266A983AFP16 carbon brush

Part No. 266A983AFP16

GE 266A983AFP16 electrographitic carbon brush (Morgan T563 grade, cross ref REP1052W), OEM replacement for GE heavy-duty DC motors. Dual wafer design delivers reliable commutation, minimal sparking, stable protective patina and low commutator wear under continuous heavy loads. Precision machined to GE OEM dimensions, bulk stock available for global industrial maintenance projects.

Material	Electrographitic, Morgan T563 Grade (2 wafers)
Dimensions	Imperial:1.000" (T) × 1.250" (W) × 3.250" (L), Copper shunt lead:4-1/2" Metric:25.4mm × 31.75mm × 82
Application	OEM replacement carbon brush for General Electric large heavy-duty DC motors, steel rolling mill drives, mine hoist motors, industrial generator equipment. Cross reference Repco REP1052W, Morgan T563 grade, built for continuous heavy-duty industrial cycli
Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Speed	Max peripheral speed up to 32 m/s
Hardness	Shore 40 – 50
Grade	T563 Electrographitic Grade
Connection	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly (no built-in spring)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	GE 266A983AFP16
Cross Reference Part	REP1052W, Morgan T563
Material	Electrographitic, Morgan T563 Grade, 2 wafers
Imperial Dimensions	1.000" × 1.250" × 3.250", Copper Shunt Lead:4-1/2"
Metric Dimensions	25.4mm × 31.75mm × 82.55mm, Shunt Lead:114.3mm
Application	GE heavy-duty DC motors, steel rolling mills, mine hoists, large industrial generators
Working Voltage	DC up to 750V
Current Density	3 – 9 A/cm²
Max Peripheral Speed	32 m/s
Hardness	Shore 40 – 50
Brush Grade	T563 Electrographitic Grade
Connection Type	Shunt wire bonded connection
Lead Type	Flexible stranded copper shunt lead
Spring	External separate spring assembly, no integrated spring
Key Features	Dual wafer construction, stable commutation, low sparking, heavy load resistant, long service life
Quality Standard	Matches GE OEM specification

Description

The GE 266A983AFP16 Carbon Brush is a heavy-duty electrographitic carbon brush with Morgan T563 grade material, original OEM spare part for General Electric large DC motors, cross-referenced as Repco REP1052W. Constructed as a dual-wafer brush assembly, it is specially engineered for high torque, continuous cycling heavy-duty industrial applications. Made of premium impregnated electrographitic compound, it maintains consistent sliding contact and stable current transfer under fluctuating heavy loads. It forms a uniform protective patina on commutator surfaces, reducing sparking, friction and commutator abrasion. The bonded flexible stranded copper shunt ensures robust mechanical attachment and steady high-current conduction. Commonly used in steel rolling mill main drives, mining hoist motors and large industrial generator systems. Precision machined to original GE OEM specifications for direct drop-in replacement. Every batch undergoes strict quality inspection for resistivity, hardness and wear performance. Bulk supply and worldwide shipping available for industrial maintenance contractors and heavy industry operators.
