Carbon Brush Holders

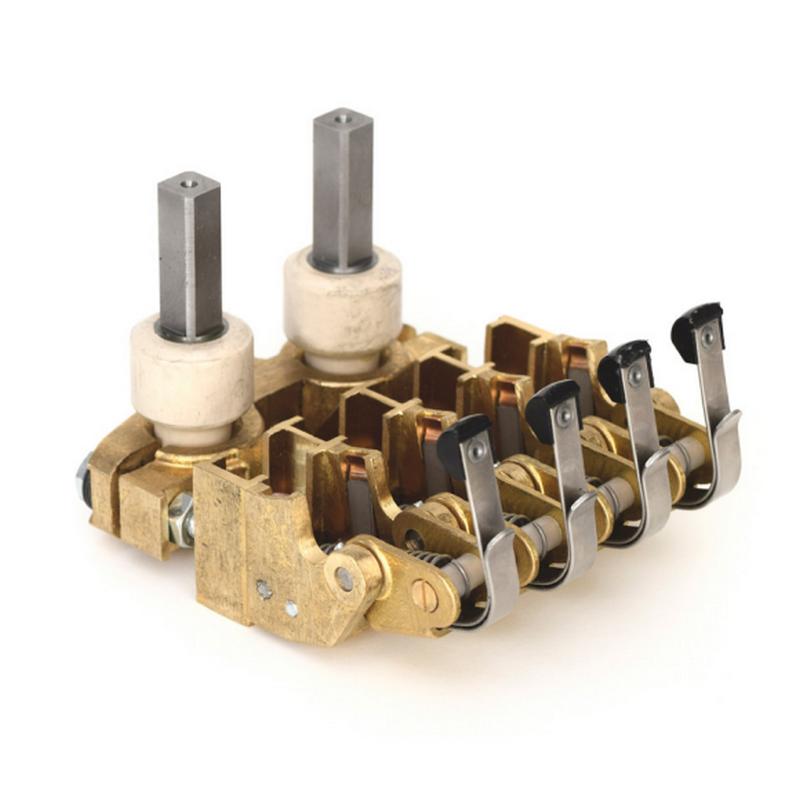

Traction Brush Holder

Part No. 10.752218.3.102

Traction Brush Holder .75 X 2.25 X 1.89 is heavy-duty single cavity brush holder built for locomotive and traction motors. It accepts carbon brush dimension of 0.75 × 2.25 × 1.89 inches. Constructed with phenolic insulated housing and stainless steel constant force spring. Maintains consistent brush pressure against commutator even under intense vibration, reduces sparking and commutator wear. Ideal replacement spare part for railway traction motor maintenance.

Material	High-impact phenolic resin, high dielectric strength, heat and vibration resistant
Dimensions	0.75” × 2.25” × 1.89”, fits matching traction carbon brush
Application	Railway traction motors, locomotive traction motors, heavy industrial traction drive motors. OEM replacement brush holder for traction motors using .75 x 2.25 x 1.89 inch carbon brushes, widely used for locomotive overhaul and heavy traction equipment mai

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Name	Traction Brush Holder .75 X 2.25 X 1.89
Product Type	Single Cavity Traction Carbon Brush Holder
Housing Material	High-impact Phenolic Resin
Spring Type	Stainless Steel Constant Force Spring
Fitted Carbon Brush Size	0.75” × 2.25” × 1.89”
Brush Quantity	1 Carbon Brush
Mounting Method	Heavy-duty Bolt-on Mounting
Terminal Material	Copper Alloy / Silver Plated Copper Optional
Connection Method	Screw Terminal
Main Application	Railway locomotive traction motors, heavy traction drive motors
Key Features	Shock & vibration resistant, traction grade, low sparking, OEM replacement
Usage	Railway traction motor overhaul & rotating machinery spare part

Description

Traction Brush Holder .75 X 2.25 X 1.89 is a heavy-duty carbon brush holder assembly specially engineered for railway and locomotive traction motors, designed to accommodate carbon brush size 0.75” × 2.25” × 1.89”. The housing is made of high-performance phenolic resin, delivering excellent insulation, heat resistance and mechanical strength to survive extreme vibration, shock and temperature fluctuations typical in locomotive traction environments. Fitted with stainless steel constant force spring, it keeps uniform pressure on the traction carbon brush during variable speed operation, minimizing electrical sparking and protecting the commutator surface from premature wear. Copper alloy terminals provide stable electrical conductivity and low heat generation under high traction load. Bolt-on mounting enables convenient field replacement during locomotive maintenance overhaul. Manufactured to OEM dimensional specifications, it serves as a reliable spare part for traction motor repair for rail and heavy traction machinery.
