Carbon Brush Holders

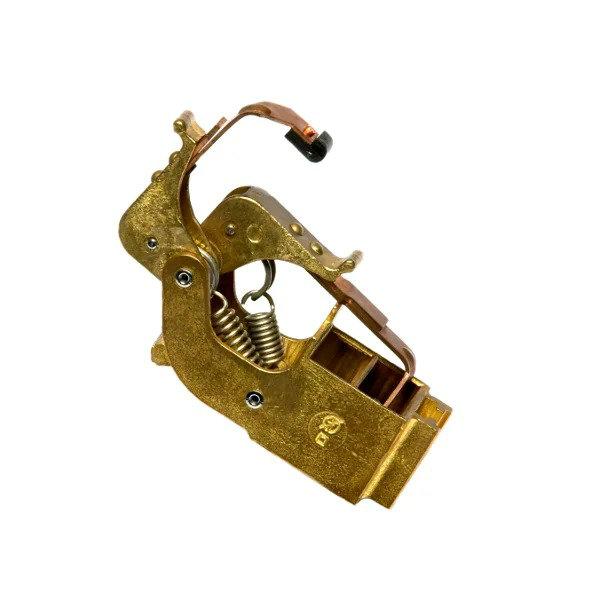

A wide range of brush-holders

Part No. A wide range of brush-holders

Full range of carbon brush holders — box-type, spring-loaded, terminal-type, multi-pocket and high-current (500A/1000A) holders in brass, copper alloy and bronze. For DC motors, AC slip-ring/wound-rotor motors, generators, wind and power-plant brush gear. Every SKU verified for brush box, spring and mounting.

Material	Full range in brass, copper alloy and bronze
Dimensions	brush box openings from small power-tool sizes up to large traction/mill sizes (market-common: 12.5×
Application	Brush holders for every current-collection duty — DC motors (commutator), AC slip-ring / wound-rotor motors (YZR / crane-type collector rings), generators and exciter systems (slip-ring brush rigging), **wind turbine and power-plant brush gear
Current Density	high-current range rated up to 500 A / 1000 A.
Connection	Brush fixed in the holder box (slot / screw / quick-change per type); spring-loaded with coil/torsion or constant-fo

Compatible Models

Industrial DC motors (Z4-class and equivalents) — box-type holders 12.5×25 / 16×32 / 20×32 / 20×40 mm DC traction / mill motors (ZQ-series brush gear) — heavy bronze holders AC wound-rotor (YZR / crane-type) motors — collector-ring brush rigging Generators / exciter systems — slip-ring brush holders (U-mount turbine-style toe-to-toe configurations) Wind turbine brush gear — constant-force spring holders with quick-disconnect terminals High-current slip rings — 500 A / 1000 A-class holders (bronze + stainless steel)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Brush Holders — Full Range (Family Listing)
Specification	Value
Product Type	Carbon brush holders — box / spring / terminal / multi-pocket / high-current
Materials	Brass, copper alloy, bronze + insulating components (per SKU)
Brush Box Sizes	12.5×25 / 16×32 / 20×32 / 20×40 / 25×32 / 25×40 mm (market-common) up to drawing — per SKU
Spring	Coil / torsion / constant-force, spring-loaded — per SKU
High-Current Range	Up to 500 A / 1000 A (bronze + stainless steel, 25 mm travel)
Applications	DC motors; AC slip-ring/wound-rotor motors; generators/exciters; wind & power-plant brush gear; high-current slip rings; traction
Standard	DIN 43051 (traction brush-holder connection dimensions)
Mounting	Brush rocker / end bracket / collector assembly, insulated

* Range-level listing. Verify brush box size, spring type/force and mounting per SKU before listing.

Compatible Models

This A wide range of brush-holders is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

Full-range carbon brush holders covering every current-collection application — from small box-type holders for DC motors and power tools to heavy traction, generator and high-current (500 A / 1000 A) brush holders. Manufactured in brass, copper alloy and bronze for conductivity, corrosion resistance and durability.

Range Covered

Box-type brush holders — DC motors, power tools, small machines (12.5×25 to 25×40 mm market-common)
Spring-loaded holders — constant-pressure coil/torsion springs
Terminal-type holders — insulated terminal connections (starter motors, power tools)
Multi-pocket holders — 2/3/5 brush positions for high-current commutator duty
High-current holders — 500 A / 1000 A, bronze + stainless steel, 25 mm travel
Rocker / collector brush gear — wind, power plants, generators, YZR crane motors

Why Correct Selection Matters

Brush box must match the brush cross-section exactly — oversize causes rocking/arcing, undersize causes sticking
Spring pressure must be correct — too low arcs, too high wears
Insulated mounting must isolate the holder from the frame
Brush-to-commutator contact ≥ 3/4 of the face

Before Ordering

Specify machine make/model and brush dimensions
Confirm brush box size, spring type/force and mounting pattern per SKU
High-current / multi-pocket / rocker types: supply a drawing or OEM part number for exact matching
