Carbon Brush Holders

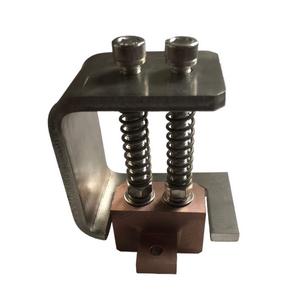

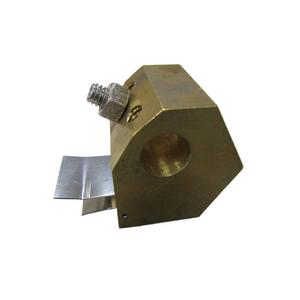

Carbon Brush Holder

Part No. Carbon Brush Holder

Carbon brush holder (brush box) — brass/bronze holder that fixes and guides the carbon brush against the commutator or slip ring with constant spring pressure; used on DC motors, slip-ring motors, generators and traction machines. Size, spring and mounting vary per SKU — verify before ordering.

Application	Carbon brush holder (brush box) — fixed and guides the carbon brush against the commutator or slip ring: brush sits in the box, spring keeps constant pressure for stable low-spark contact; used on **DC motors, wound-rotor (slip-ring) induction motors,

Compatible Models

DC motors & generators (commutator duty) Wound-rotor / slip-ring induction motors Turbine generators & alternators DC traction motors (e.g. ZQ-series class) Brush rocker / brush holder assemblies **Always verify**: brush box size (W×H×depth) spring type and mounting per machine

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Carbon Brush Holder (Category)
Specification	Value
Product Type	Carbon brush holder (brush box)
Material	Brass / bronze (insulated carrier variants; DMC/phenolic)
Common Box Sizes	16×32, 20×32, 20×40 mm (examples — verify)
Application	DC motors/generators, slip-ring motors, generators, traction motors
Spring	Constant-pressure (flat/coil), on brush center
Mounting	Insulated stud / brush rocker
Voltage	Per machine — pending
Current	Per brush — pending

* Category listing. Confirm box size, spring type, mounting and fitment per SKU before ordering.

Compatible Models

This Carbon Brush Holder is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

Carbon brush holder (brush box) — the mechanical assembly that holds the carbon brush against the commutator or slip ring: the brush sits in the box and a spring applies constant pressure for stable, low-spark current transfer.淄博广联电机厂

Construction

Brass / bronze brush box (corrosion-resistant, conductive, good heat transfer)
Insulated carriers and studs (DMC/phenolic or insulated rods) for brush-circuit isolation
Spring on brush center — prevents uneven wear; pressure direction and position matter
Common box sizes: 16×32, 20×32, 20×40 mm (verify)
