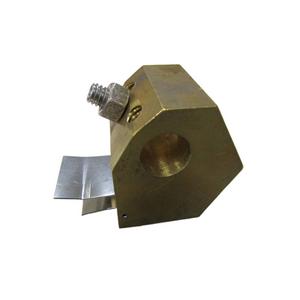

New Helwig Carbon Brush Holder 22.371517.1.101

Part No. 22.371517.1.101

NEW Helwig carbon brush holder, series 22.371517.1.101, for the Helwig 371517 elevator/escalator-machine brush family (approx. 0.375" × 1.5" brush box). Supplied new; confirm box size, mounting and spring configuration with supplier before ordering.

Dimensions	- Helwig brush-holder series number: 22.371517.1.101 (dot format matches Helwig stock-part numbe
Application	Helwig carbon brush holder for commutator brush positions on elevator/escalator machine motors (Otis-type) and similar DC machines — the 371517 brush family is stocked by elevator/escalator parts specialists (North East Escalator Parts, UNITEC — an Ot
Spring	Brush-holder spring/spring assembly — Helwig supplies spring assemblies separately (stock-list spring numbers, e.g. 01.3

Compatible Models

Helwig brush family 371517: 22-371517-400-3-01 11-371517-870-2-09 HELW75-371517-811-4-26 (companion brushes for this holder) Helwig OEM brush-holder catalog classifies brush holders for **Otis** elevator machine motors (0.5 × 1.5 and 3/8 × 1 box sizes listed) Typical platforms: Otis gearless/geared elevator machine motors escalator drive motors Westinghouse-type elevator machines (confirm fit per machine)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Specification	Value
Manufacturer	Helwig Carbon Products, Inc.
Part Number	22.371517.1.101
Product Type	Carbon brush holder
Condition	New
Brush Box (T x W)	Approx. 0.375" x 1.50" (9.5 x 38.1 mm) — inferred from companion 371517 brushes; TBC with supplier
Associated Brush Family	Helwig 371517 (22-371517-400-3-01; 11-371517-870-2-09; HELW75-371517-811-4-26; approx. 0.370–0.375" x 1.5" x 1.70–1.75")
Mounting	Brush-holder stud / riser interface (TBC)
Spring	Spring assembly supplied separately (Helwig stock spring part; confirm inclusion)
Connection	Brush lead terminal eye into holder; holder to machine stud
Application	Elevator/escalator machine motors (Otis-type) and similar DC commutator machines
Voltage	Not rated (N/A)
Current Density	N/A (machine/brush dependent)
Max Surface Speed	N/A (machine dependent)
Hardness	N/A (metal holder)
Grade	N/A (holder)
Lead Type	N/A (lead is part of the brush)

Compatible Models

This New Helwig Carbon Brush Holder 22.371517.1.101 is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

This is a new Helwig carbon brush holder, part number 22.371517.1.101, from the Helwig brush-holder series used on elevator/escalator machine motors (Otis-type) and similar DC commutator machines. The number follows Helwig's stock-part format (family prefix + base number + configuration suffix), and the 371517 base number corresponds to Helwig's elevator-machine brush family (companion brushes: 22-371517-400-3-01, 11-371517-870-2-09, HELW75-371517-811-4-26, sizes ≈0.370–0.375" × 1.5" × 1.70–1.75"). The holder provides the brush box, lead slot and mounting interface for the brush; the spring assembly is normally a separate Helwig stock item. As the exact brush-box size, stud spacing and spring configuration are not published for this specific suffix variant, confirm them against the original holder on the machine before ordering.
