Carbon Brush Holders

wind power Brush Holders

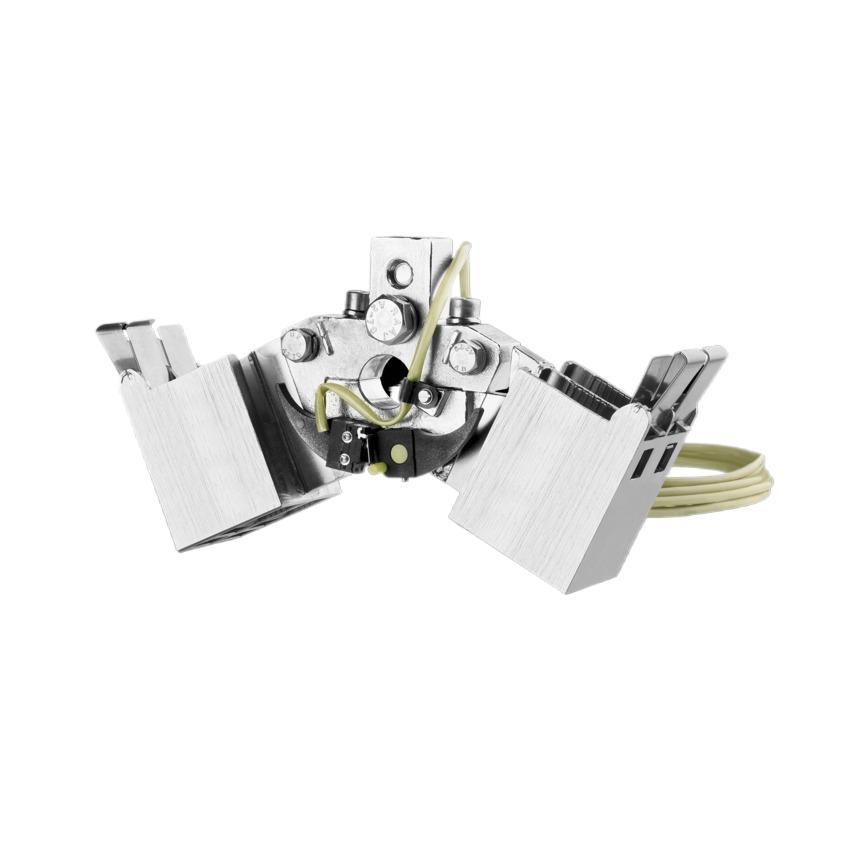

Part No. wind power Brush Holders

Wind-power brush holders engineered for turbine slip-ring assemblies — precision brass construction, constant-force springs for uniform brush pressure, quick-disconnect terminals for fast tool-free brush changes, and optional wear indicators to cut maintenance downtime. Custom retrofit designs available for wind generators.

Dimensions	typical boxes from ~1/2″ up to 3″+ per application
Application	Wind turbine generator slip-ring assemblies — mounting and spring-loading carbon brushes against collector/slip rings for rotor excitation, pitch-system DC motors and signal transfer, onshore and offshore turbines. Used in wound-rotor induction, synchrono

Compatible Models

Wind turbine generator slip-ring assemblies — platform compatibility is **per SKU / per slip-ring drawing** *(blocked: must verify)* Industry-standard replacement bases: **GE and Westinghouse power-generation holders** (stock items) Retrofit example: **Hitachi 1.5–1.7 MW wind turbine** holder upgrade kit Pitch-system DC motors & slip rings (Schunk pitch-system brush holders) Wound-rotor induction motors & synchronous generators (custom wind-power holder designs) **Always verify**: brush box opening size mounting hole spacing ring diameter and spring force against your OEM holderhelwigcarbon.comhelwigcarbon.com

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Wind Power Brush Holders — Family Specifications
Specification	Value
Product Type	Wind power brush holder (slip-ring brush mounting)
Material	Precision-machined brass (typical) — confirm per SKU
Spring	Constant-force spring; optional built-in wear indicator
Connection	Quick-disconnect terminal (HQD); adjustable mounting bolts/posts
Brush Box	Per SKU — adjustable/replaceable on upgrade designs
Compatibility	Wind turbine slip-ring assemblies; GE/Westinghouse retrofits; Hitachi 1.5–1.7 MW kits
Environment	Onshore & offshore turbine duty
Installation	Direct retrofit or custom design per slip-ring drawing

* Family-level listing. Each specific holder SKU must be verified for brush box size, mounting pattern, ring diameter and spring force before listing.

Compatible Models

This wind power Brush Holders is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

Brush holders purpose-built for wind turbine slip-ring systems. Unlike conventional spring-finger holders, wind-power holders use constant-force springs that hold pressure uniform across the full usable brush length — improving brush life, distributing current evenly, and eliminating selective action. Period tension adjustment is no longer needed.

Key Features

Constant-force spring — consistent brush-face pressure through full brush wear life; extended brush life and stable contact
Helwig Quick Disconnect (HQD) — brush changes without tools, no nuts or bolts; positive locking even under vibration-heavy turbine conditions
Built-in wear indicator (optional) — red "danger strip" signals when the brush is worn out for simple preventive maintenance
Adjustable / replaceable brush boxes — longer boxes for better brush support; teflon spacers guard against flashovers
Precision-machined brass construction for durability in onshore and offshore environments

[IMAGE 2 – Detail: constant-force spring and HQD terminal]

Fitment

Wind turbine generator slip-ring assemblies (rotor excitation, pitch systems, signal transfer)
Direct retrofit for GE / Westinghouse power-generation holders; custom designs for Hitachi 1.5–1.7 MW and other wind platforms
Fitment is per SKU — confirm brush box opening, mounting hole spacing, ring diameter and spring force against your OEM holder

Maintenance Tips

Check spring force with a brush-holder digi-scale; replace springs when pressure falls below spec
Use the wear indicator to schedule brush replacement before contact fails
Ensure brush seating and correct box clearance to prevent jamming in high-vibration operation

Wind-power brush holder family listing. Helwig Carbon, Schunk and BGB are trademarks of their respective owners; compatibility references are informational.
